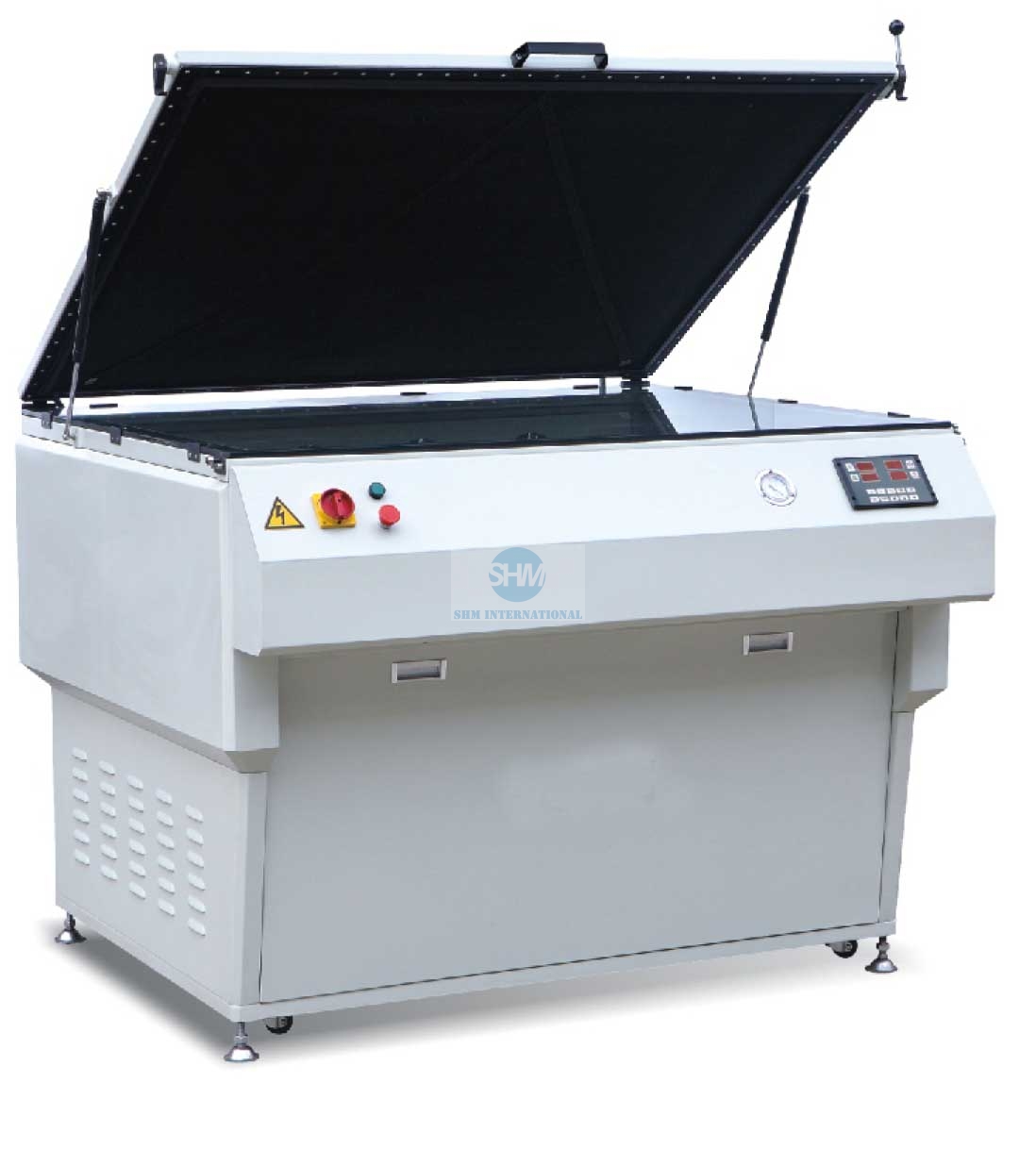

JB1213SII Full auto exact exposuring machine



MAIN FEATURES:

1. It is suitable to the screen frame exposure of high precision lines, dot, high density mesh for printing circuit board, silk printing and so on.
2. The exact calculative light flux control device ensure the veracity of exposure and avoid exposal bug such as mesh reticle, lack of exposure caused by lack of voltage, lamp aging, lamp startup instability and so on.
3. Full automatic model, vacuum, exposure, exhaust are finished automatically in one time, easy operation.
4. The imported best angle glisten cover ensure the illumination intensity equality.
5. Microcomputer control many groups memory mode for transferring, using conveniently.


MAIN SPECIFICATIONS

Max. frame size

1200 x 1300mm

Exhausting speed

1L/s

Vacuum degree

0~600mmHG

Light power

4.0kW (Cold air UV lamp)

Machine weight

300kg

Machine dimensions (L x W x H)

1650×1600×1350mm
