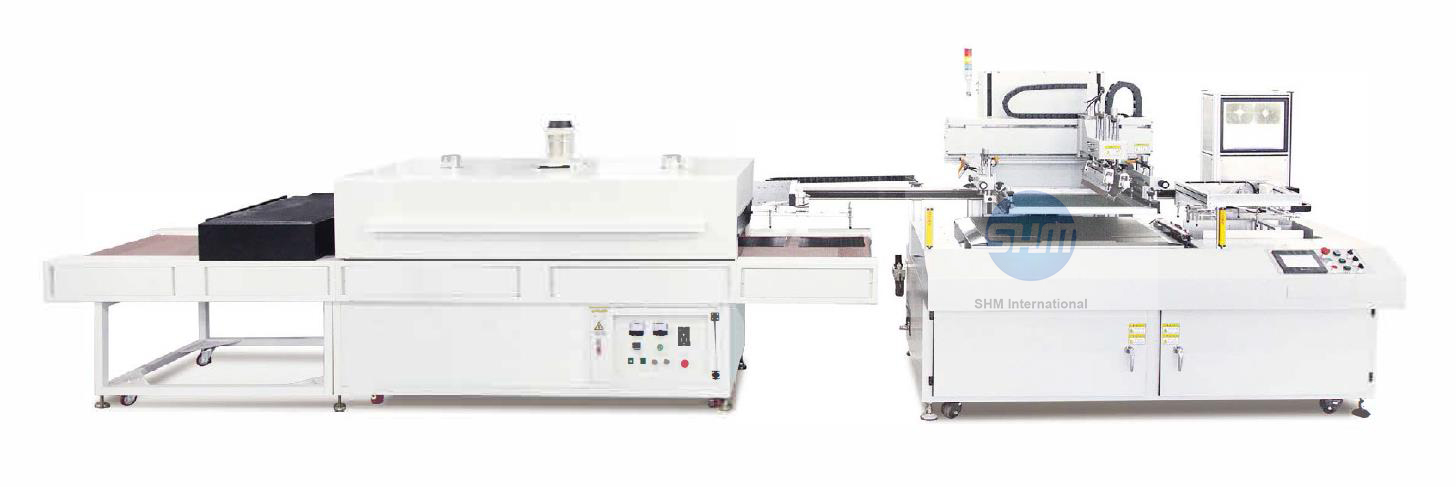

 CCD REGISTERING SCREEN PRINTING MACHINE ( SHEET FEEDING )







INTRODUCTION:

1.Mechanical automatic high precision screen printing machine, Robot arm loading and unloading, accurate within ±0.08mm, superior performance, production yield greatly improved.
2.Machine structure, strong, light weight, imported servo and transmission motor plus precision steering positioning, stable operation, quiet and more smooth and fast.
3.The printing table is made of cast aluminum, with the flatness of ±0.1mm and the uniformity of printing film thickness.
4.Machine printing stand casting column and precision linear guide rail synchronous locking device design, ensure printing film thickness uniformity.
5.Servo motor screen lift and traditional printing with high precision digital constant pressure printing head, so that the printing can fully display the constant pressure effect.
6.Auto loading and take off material£¬Directly improve productivity and quality yield
7.With safety recovery, automatic error detection system, safety grating, emergency stop button, warning device and other safety design.


MAIN SPECIFICATIONS:

Model

LC-7120DZSP

Working table size

800x1400mm

Max printing size

700x1200mm

Min printing size

350x350mm

Printing thickness

5mm

Working table suction size

700x1200mm

Working table suction hole diameter

¡Ó1.0mm

Working table suction hole distance

15x15mm

Squeegee printing ways

Single squeegee printing+Single lift up the screen frame

Alignment ways

Mechanical positioning

Precision

±0.02mm

Printing speed

500times/hour

Max frame size

1000x1450mm

Frame thickness

30-40mm

Frame height£¨washing frame position£©

250mm

Working table height

900±30mm

Squeegee printing pressure

1-6kg

Frame lift distance

0-10mm(Manual)

Screen frame&working table distance

0-15mm(Man-machine interface setting)

Printing distance

0-1100mm(Man-machine interface setting)

Squeegee angle

±40°

Power supply

3¡Ó£¬220v/380v,50/60Hz

Power consumption

3.5kw

Compressed air supply

5-6kg

Air consumption

70L/Min

Machine weight

1500kg

Dimension

4500x1550x2200mm
