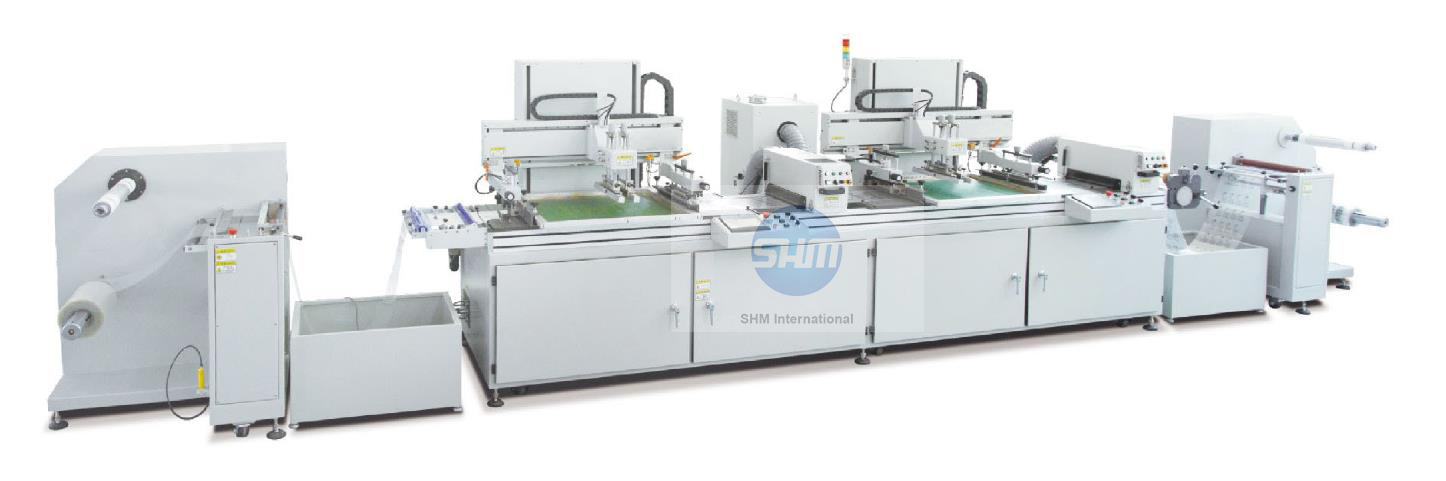

ROLL TO ROLL (UV) SCREEN PRINTING MACHINE
INTRODUCTION:
1.Roll to Roll (UV) Screen Printing Machine, precise positioning within 0.05-0.1 mm, superior performance, production yield greatly improved.
2.The machine has strong structure£¬ light weight, imported servo and transmission motor plus precise steering and positioning, stable operation, quiet and more smooth and fast.
3.The main component of the printing is cast, and the flatness of the table is within 0.1 mm.
4.Machine printing stand casting column plus precision linear guide rail lock device design£¬ printing ink layer evenly.
5.Machine can be equipped with IR unit, slitting unit and sheet cutting unit as optional.
6.Machine can be equipped with multi color unit upon customer requirement.
MAIN SPECIFICATIONS:
|
Model |
LC450UV |
LC470UV |
LC570UV |
|
Screen frame size |
700x850mm |
700x1150mm |
850x1150mm |
|
Max feeding length |
50-410mm |
50-410mm |
50-510mm |
|
Max printing size |
400x500mm |
400x700mm |
500x700mm |
|
Precision |
0.05-0.1mm |
0.05-0.1mm |
0.05-0.1mm |
|
UV power |
3x5kw |
3x5kw |
3x5kw |
|
Printing speed |
750m/h |
750m/h |
950m/h |
|
Dimensions |
6500x1050x1700mm |
6500x1050x1700mm |
7000x1250x1900mm |
