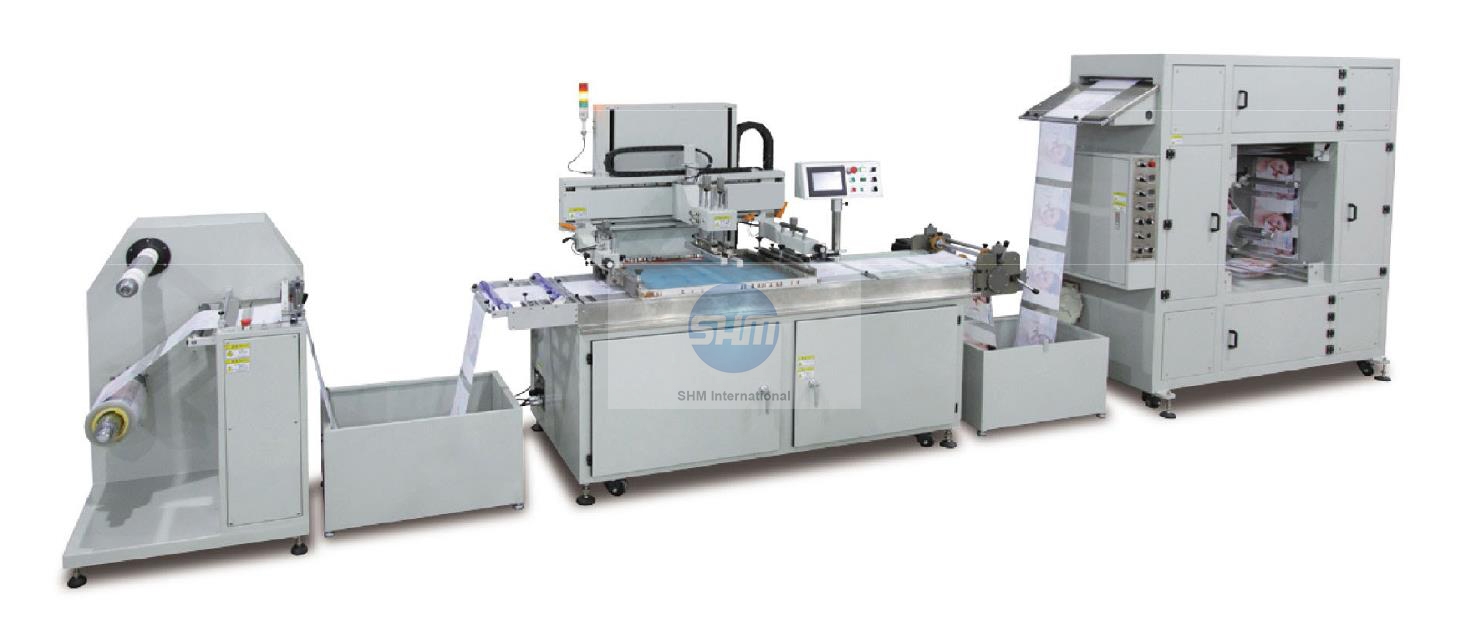

 ROLL TO ROLL  AUTOMATIC SCREEN PRINTING MACHINE







INTRODUCTION:

Roll to Roll Automaitc Screen Printing Machine, precise positioning within 0.05-0.1 mm, superior performance, production yield greatly improved.The machine has strong structure, light weight, imported servo and transmission motor plus precise steering and positioning, stable operation, quiet and more smooth and fast.The main component of the printing is cast, and the flatness of the table is within 0.1mm.Machine printing stand casting column plus precision linear guide rail lock device design, printing ink layer evenly.



MAIN SPECIFICATIONS:

Model

LC450SP

LC470SP

LC570SP

Screen frame size

700x850mm

700x1150mm

850x1150mm

Max feeding length

50-410mm

50-410mm

50-510mm

Max printing size

400x500mm

400x700mm

500x700mm

Printing speed

750m/h

750m/h

950m/h

Dimensions

6500x1050x1700mm

6500x1050x1700mm

7000x1250x1900mm
