TC145 SERVO DRIVE AUTOMATIC CYLINDER SCREEN PRESS
MAIN SPECIFICATIONS:
|
Model |
TC-145 |
|
Max. material size |
1050x1450mm |
|
Min. material size |
460x700mm |
|
Max. printing size |
1040x1450mm |
|
Screen frame size |
1440x1710mm |
|
Printing speed |
500-3000pcs/h |
|
Sheet thickness |
128-500g/m² |
|
Power |
3P 380V 50Hz 31kw |
|
Weight |
6800kg |
|
Dimension |
5050x3970x2500mm |
MAIN FEATURES:

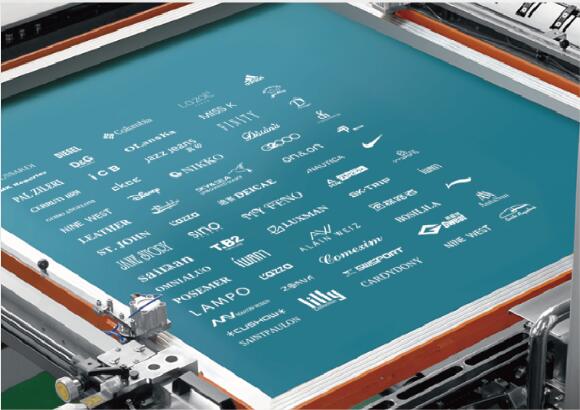

1. Separated screen frame structure
Screen frame can break away from transmission part and be pulled out it's easy for adjusting the registration and feeding; meanwhile it is must safer and faster for cleaning of cylinder and screen; Opto sensors automatic detection system to ensure the reliability of the action and avoid rack breakage or damage of main drive.
Screen frame can break away from transmission part and be pulled out it's easy for adjusting the registration and feeding; meanwhile it is must safer and faster for cleaning of cylinder and screen; Opto sensors automatic detection system to ensure the reliability of the action and avoid rack breakage or damage of main drive.

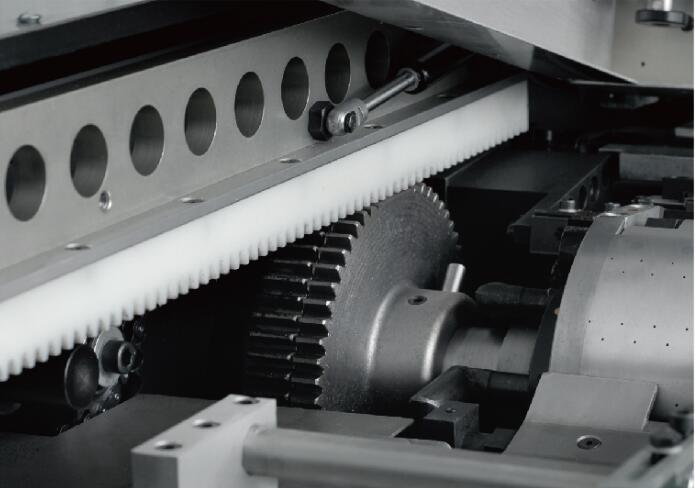

2. Nylon Rack
Screen plate and cylinder running in-phase, with the combination of nylon rack and steel gear drive, ensure the running gear and rack no space and no vibration, to ensure overprint accurate, low wear, prolong the service life of equipment.

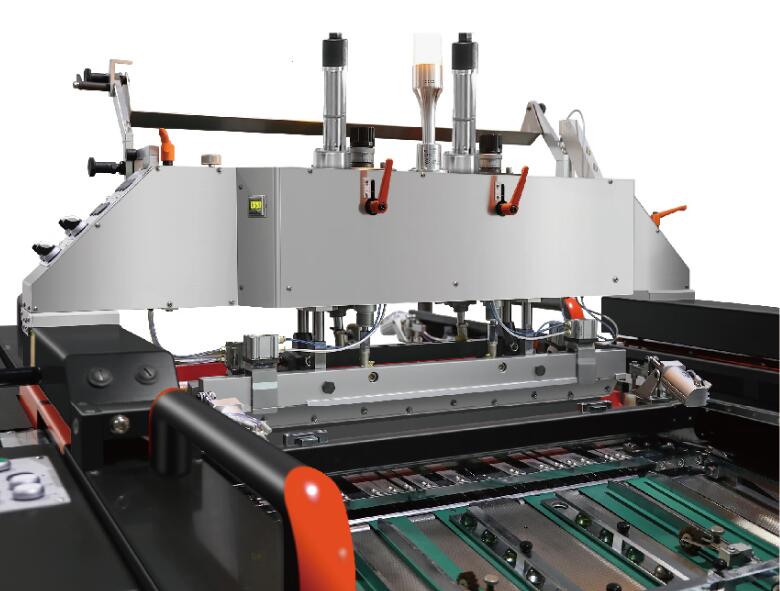

3. Heavy pneumatic squeegee system
Heavy duty precision squeegee system, comprehensive use of electronic,pneumatic, hydraulic, mechanical, optical fiber and other advanced technology, can be preset pressure of squeegee, squeegee down position; squeegee pressure keep constant after confirmed, ensure to precise control the printing ink layer thickness and ensure the printing quality is perfect.
Heavy duty precision squeegee system, comprehensive use of electronic,pneumatic, hydraulic, mechanical, optical fiber and other advanced technology, can be preset pressure of squeegee, squeegee down position; squeegee pressure keep constant after confirmed, ensure to precise control the printing ink layer thickness and ensure the printing quality is perfect.

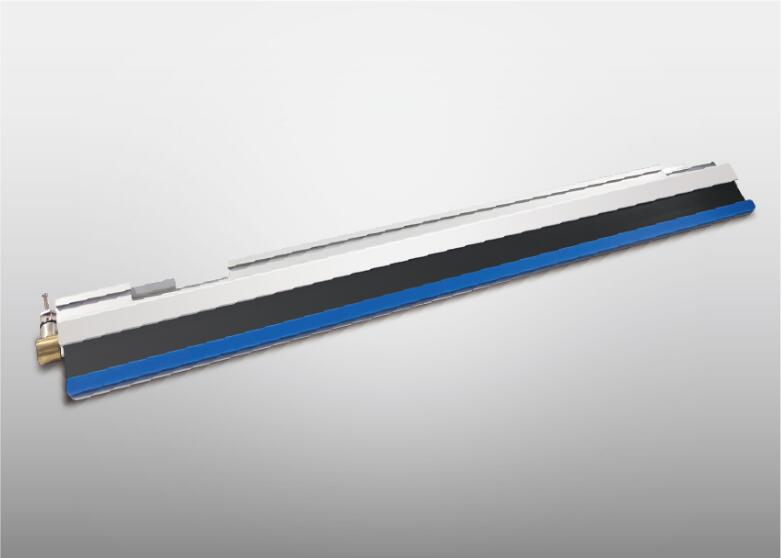

4. German RKS carbon fiber silk screen scraper
Super standardized printing quality, Regenerated repeat required quality, The best flatness surface of scraper ,makes the ink layer stable and settle fast, Excellent solvent resistance and abrasion resistance, extending the life of scraper and consumables.
5. The servo driven
High accurate transmission, simple structure, and easy adjustment etc.
