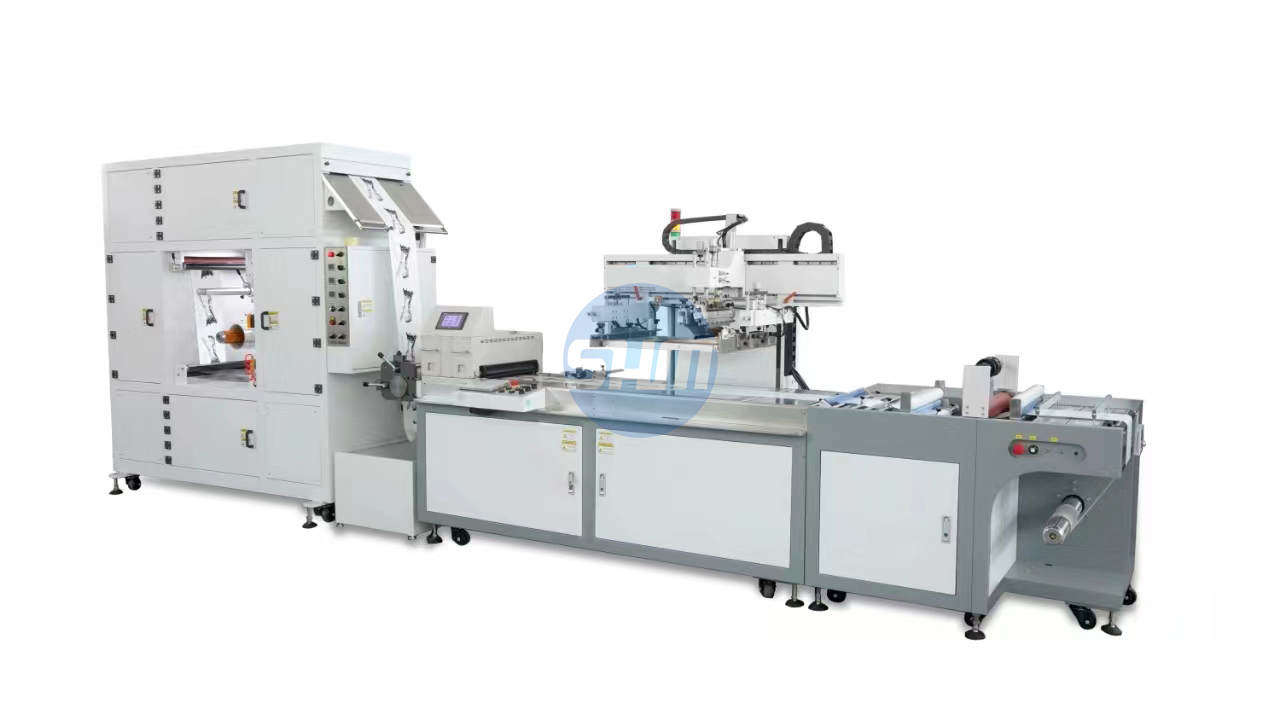

LC-570UI ROLL TO ROLL AUTOMATIC SCREEN PRINTING MACHINE
(WITH UV & IR UNIT)
1. This equipment is suitable for label printing, instrument panel, name plate, sign plate and so on. Whole line including UV coating unit and IR coating unit.
2. The printing unit is controlled by Mitsubishi PLC + touch interface, adopts two Mitsubishi CNC servo motor to control printing material running and printing. Also with Japanese color sensor tracking, pneumatic printing plate lock system and anti-drop ink device, to bring more precised printing.
3. Unwinding unit has auto feeding, anti static, dust remove device, film removing and stop machine without material function.
4. Hot air dryer ( 60 meters drying, automatic feeding, compound separation paper function, ion fan, with cold air device, add LED lamps, printing press Stop function, hopper blocking device)
|
Model |
LC-570UI |
|
Basic specifications |
|
|
Working surface height |
870mm |
|
Air supply |
5Bar |
|
Power supply |
380V 3P 50HZ |
|
Power |
60kw |
|
Weight |
2800kg |
|
Dimension |
7500x1260x2200mm |
|
Unwinding unit |
|
|
Unwinding shaft diameter (pneumatic type) |
3 inch |
|
Max unwinding loading |
100kg |
|
Max unwinding roll diameter (including unwinding shaft) |
450mm |
|
Max feeding width |
500mm |
|
Printing unit |
|
|
Max lift height of printing plate |
200mm |
|
Max printing size |
500x700mm |
|
Max printing frame size |
800x1050mm |
|
Applicable substrate thickness |
0.188-0.38mm |
|
Printing platform size |
830x630x18mm |
|
Air suction range |
500x700mm |
|
Air suction hole spacing |
15x15mm |
|
Air suction hole diameter |
0.8mm |
|
Squeegee distance |
800mm |
|
Printing precision |
± 0.1mm |
|
Glass inspection unit |
|
|
Inspection table size |
570x590mm |
|
LED lamp |
10pcs |
|
UV drying unit |
|
|
Max drying width |
510mm |
|
Power of UV lamp |
7kW x 2pc |
|
IR Drying unit |
|
|
Max feeding size |
500mm |
|
Applicable substrate thickness |
0.188-0.38mm |
|
Temperature range |
room temperature -160℃ |
|
Drying length |
50M |
|
Rewinding unit |
|
|
Rewinding shaft diameter (pneumatic type) |
3 inch |
|
Max rewinding diameter (including paper roll) |
450mm |
|
Max rewinding loading |
80kg |
