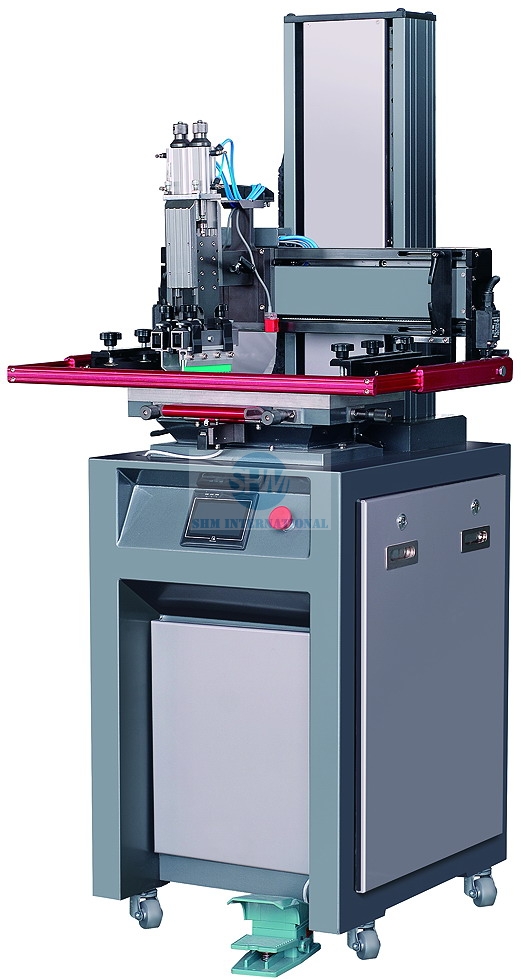

JB-25CA/45CA VERTICAL TYPE SCREEN PRINTER







MAIN FEATURES:

It is mainly for printing on small size film, sheet, board, such as FPC, IMD, MEMBRANE, Mobile glass, PC glass, Solar silicon chip, biological test piece, OPTO-Electronics, Electric elements etc.


MAIN SPECIFICATIONS:


Model

JB-25CA

JB-45CA

Max printing size

200x250mm

300x450mm

Max frame size

380x530mm

500x750mm

Min frame size

240x350mm

250x550mm

Working table size

250x400mm

400x600mm

Capacity

800P/H

800P/H

Printing speed

100-500mm/sec

100-500mm/sec

Frame height

20-30mm

20-30mm

Max substrate thickness

50mm

50mm

Frame rising height

300mm

300mm

Frame adjust scope

±10mm

±10mm

Power

0.83kw

0.83kw

Air source

5-7kgs/cm² 0.52L/cycle

5-7kgs/cm² 0.52L/cycle

Weight

190kg

250kg

Dimension

690x630x1600mm

940x710x1620mm
