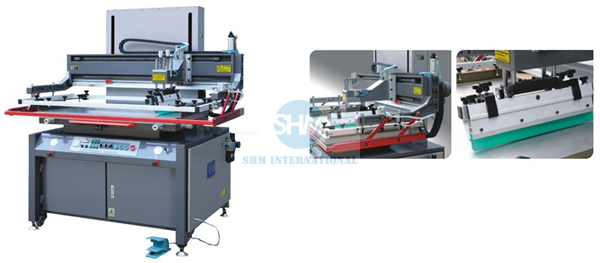

JB-750II/960II/1280II HORIZONTAL-LIFT HALF TONE PRINTING MACHINE







INTRODUCTIONS:

It is suitable to screen printing of many flat surface such as paper, plastic, glass, ceramics, metal, textile, leather and so on, especially for the printing of electron field PCB, soft PCB, PCB liquid state sensitization glue, SMT tin cream.


MAIN FEATURES:

1. Integrative speed reducer drive the up and down of printing head quickly and steadily.
2. High precision guide-rail equipped with "MEGADYNE" synchronization belt drive the printing with higher and steadier working precision through frequency conversion.
3. Gas-liquid transformer linked with off-network cylinder, which ensure network off equally and steadily.
4. The fine tuning and lock device of work table is separate, which eliminate the work table locked error.
5. Two cylinders control the squeegee and ink return blade separately so that the printing pressure is large and equal.


MAIN SPECIFICATIONS:


Model

JB-750 II

JB-960 II

JB-1280 II

Max printing size

500x700mm

600x900mm

800x1200mm

Max frame size

800x1160mm

900x1360mm

1100x1660mm

Workbench size

600x900mm

700x1100mm

900x1400mm

Max printing thickness

40mm

40mm

40mm

Height of instant off-network

0-20mm

0-20mm

0-20mm

Max printing Speed

1200pcs/h

1100pcs/h

900pcs/h

Weight

600kg

750kg

900kg

Dimension

1500x1080x1700mm

1700x1180x1700mm

2000x1380x1700mm
