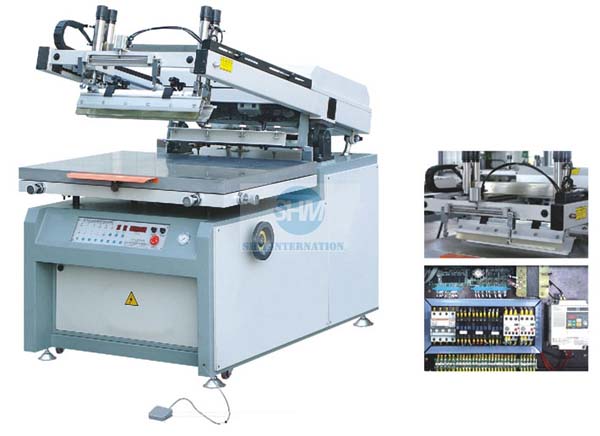

JB8012G/6090G Microcomputer Screen Printing Machine







MAIN FEATURES:





1. The printing effect is very excellent by using four air cylinders.
2. The height of screen-release device can be quickly adjusted, ensure printing precision and quality.
3. The tension pressure for printing blade, ink-return blade is adjusted separately at infinite speed, which increases the service lift and printing quality of half tone.
4. Printing stroke and half tone fixed system can be quickly adjusted to meet different printing area.




MAIN SPECIFICATIONS:

 Model

 JB-6090G

 JB-8012G

 Max.printing size

 600 x 900mm

 800 x 1200mm

 Max.frame size

 950 x 1100mm

 1250 x 1500mm

 Workbench size

 800 x 1000mm

 1000 x 1300mm

 Printing speed

 1200pcs/h

 1000pcs/h

 Max printing thickness

 25mm

 25mm

 Height of instant off-network

 0-15mm

 0-20mm

 Machine weight

 600kg

 900kg

 Machine dimensions

 1600 x 1200 x 1300mm

 1900 x 1400 x 1400mm

 Printing motor power

 0.75kW

 1.1kW

 Lifting motor power

 0.75KW

 1.1KW

 Wind motor power

 1.1KW

 1.5KW

 Machine power

 2.6KW

 3.7KW
