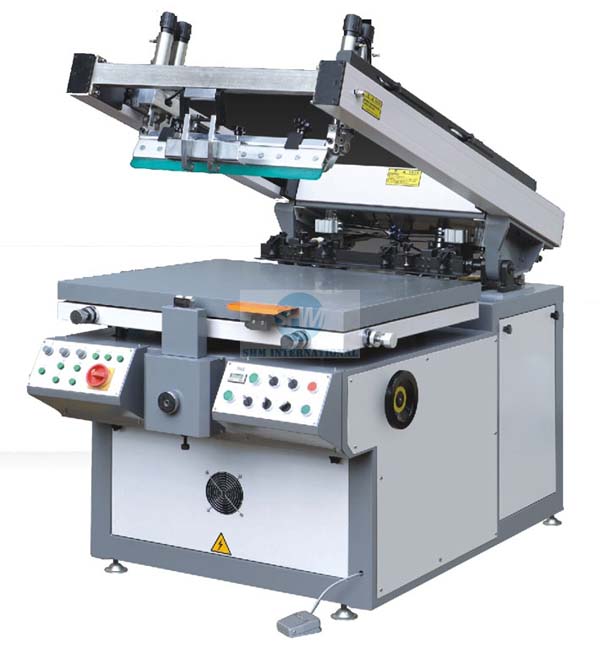

JB-8060A High Precision Screen Printing Machine





MAIN FEATURES:

1. Printing course is controlled by servomotor.(Suitable for printing high glutinosity ink)
2. It is easy to acquire the high precision printing products due to synchronized operation of the instant off-network structure and scraper.


MAIN SPECIFICATIONS:

Max. printing size

800 x 600mm

Max. frame size (outside)

1100 x 950mm

Min. frame size (outside)

600 x 550mm

Max. printing speed

1200pcs/h

Height of instant off-network

0~25mm

Use level of the scraper

12L/min

Skewness of the scraper

0~60°

Air pressure

0.4~0.6mpa

Max printing thickness

35mm

Power

3P 50Hz 380V 2.2kW

Workbench size

900 x 800mm

Machine weight

600kg

Machine dimensions (L x W x H)

1600 x 1150 x 1450mm
