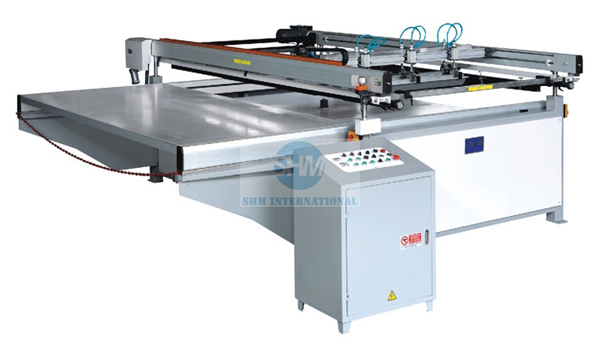

JB-PY2400/PY3000 LARGE SIZE SEMI AUTOMATIC SCREEN PRINTING MACHINE







INTRODUCTIONS:

This series is a kind of planar printing machine with large size, which can be used to printing large board, large planar glass, indoor and outdoor ornament and other material. A Distinct and precise effect can be achieved through simple operation of the machine.



MAIN SPECIFICATIONS

Model

JB-PY2400

JB-PY3000

Max printing acreage

1200 x 2400mm

1300 x 2600mm

Max dimensions of the workbench (outside)

1400 x 2700mm

1500 x 3000mm

Speed of the scraper

0.2-1.0m/sec

Max printing speed

0-50mm

Power

10.5kW

Air pressure

0.6mpa

Machine weight

1600kg

1800kg

Machine dimensions

3540 x 2800 x 1200mm

4140 x 2800 x 1220mm
