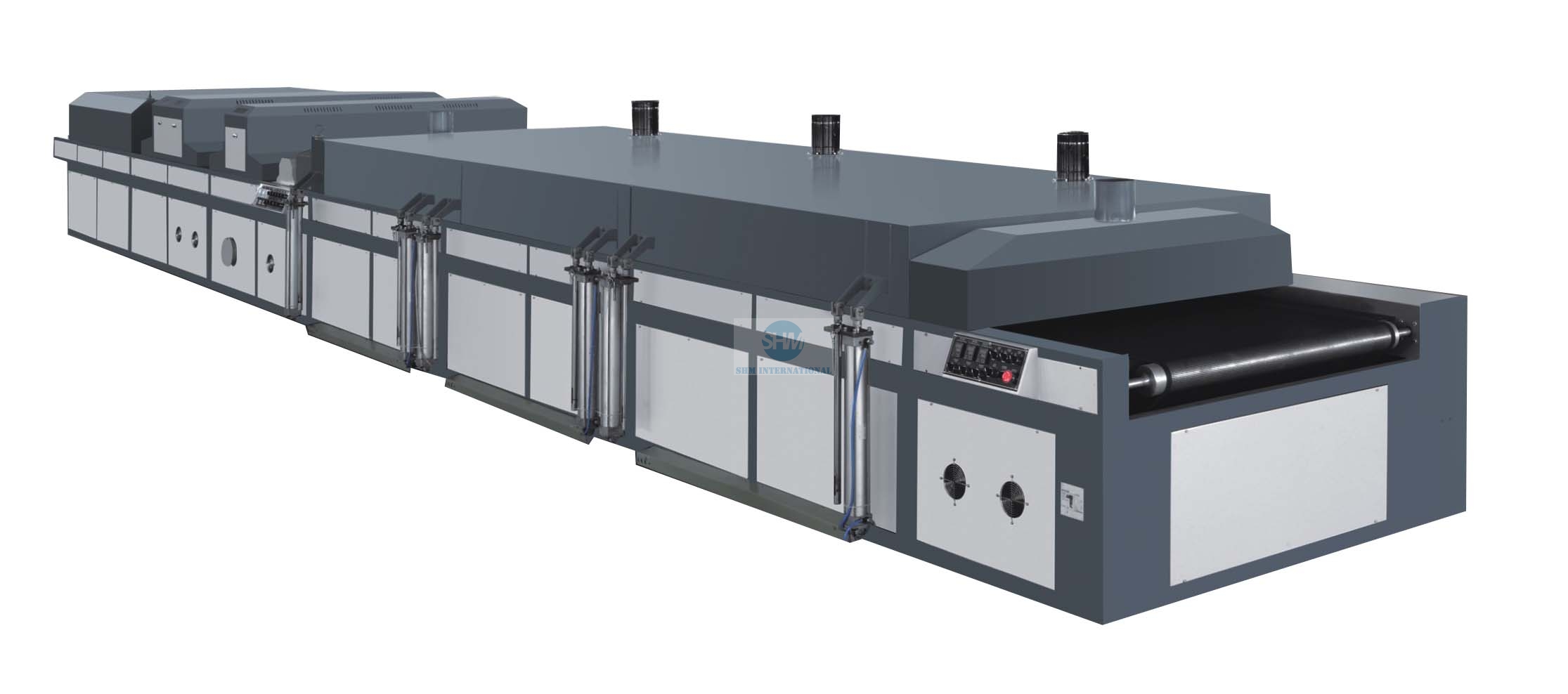

JB-800P/1100P AIR-JET & UV CONVOYER BELT DRYER







MAIN FEATURES:

1. Multi-section free combination design, according to different printing, the user can choose different ink
2. Three hot air units, one UV unit and one cooling unit.
3. Cycle pipe line makes sure the hot air high active and steady
4. Cooling unit keep blowing the cold air blast through the high pressure blower, cooling the printing quickly.
5. Frequency control, Teflon convey belt, thermo-stability, rub resistance, radiation hardened insure the machine working life.
6. Automatic tensioning and correcting unit insure the delivery stable and operation easy.


MAIN SPECIFICATIONS:


Model

JB-800P

JB-1100P

Speed

60m/min

60m/min

Conveyor motor power

0.75kw

0.75kw

Effective solidify width

800mm

1100mm

Max temperature (Hot air unit)

150℃

150℃

IR lamp power (Hot air unit)

2kw x 9 pcs x 3 units

2kw x 9 pcs x 3 units

Cycle fan power (Hot air unit)

1.1kw x 2 pcs x 3 units

1.1kw x 2 pcs x 3 units

UV lamp power (UV unit)

8.8kw x 2 pcs x 3 units

8.8kw x 2 pcs x 3 units

Radiating fan power (UV unit)

0.75kw x 2

0.75kw x 2

Absorption fan power (UV unit)

0.75kw

0.75kw

Air condition power (Cooling unit)

0.75kw x 2

0.75kw x 2

Air blower power

0.85kw

0.85kw

Absorption fan power of feeder

0.55kw

0.55kw

Weight

2300kg

2600kg

Dimension

11100x1730x1650mm

11100x1950x1650mm



 cooling machine.jpg

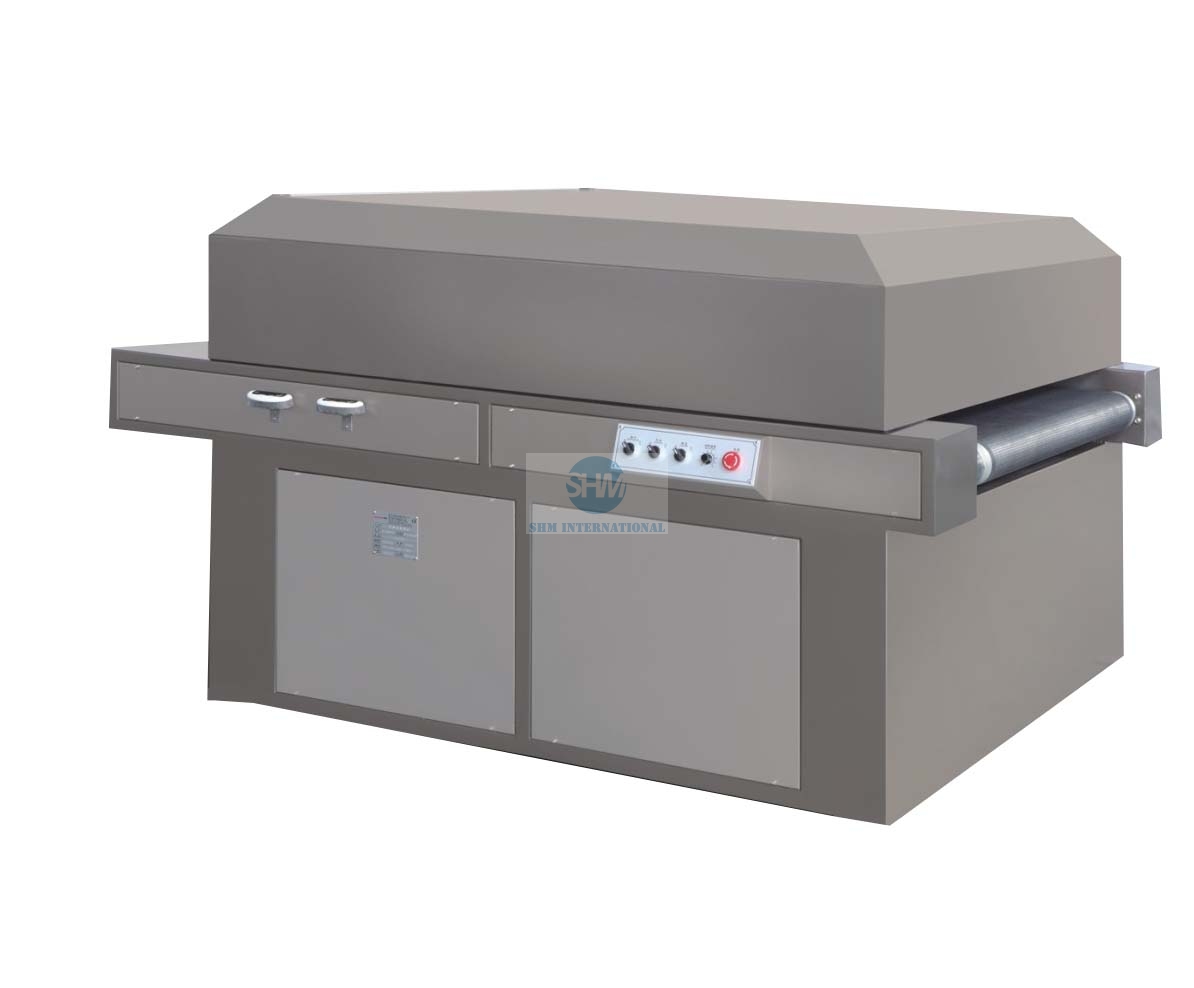

COOLING UNIT


MAIN FEATURES:

1. Equiped with flat conveyor dryer or UV machine which is used to cool the pritnig after dryer.
2. Can offer three cooling method, water cooling, air condition and wind cooling.
3. Need connect power independently, with frequency conversion conveyor belt
4. Keep blowing the cold air blast through the high pressure blower, cooling the paper fleetly, so that the thin paper can be deliveryed smoothly.


MAIN SPECIFICATIONS:


Model

Water cooling

Air condition

Wind cooling

Speed

60m/min

60m/min

60m/min

Conveyor motor power

200w

200w

200w

Min temperature

15

20

24

Fan power

1.1kw

0.85kw

0.85kw

Weight

900kg

800kg

700kg

Dimension

2100x240x1330mm
