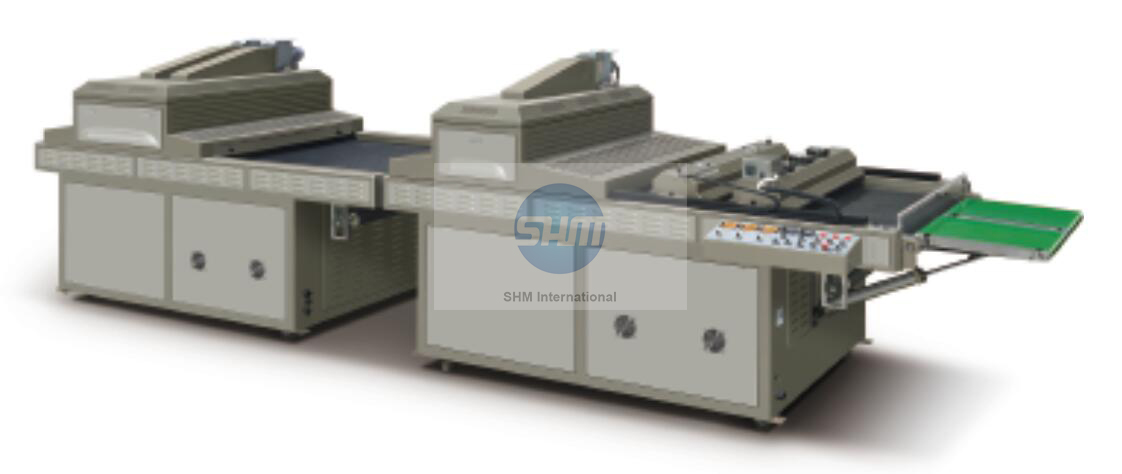

JB-1050XH Snow UV Curing Machine



INTRODUCTIONS:



JB-1050XH is newly designed specially for making snow effect on cigarette and wine packing cases, which also can be used with full automatic screen press or other equipments. It also can be used for drying, dehumidifying and curing other special UV ink of screen printing, dyeing, electroplating and electron circuit board etc.





MAIN FEATURES:

1. Three groups of UV lamps are independently. Three choice for the UV intensity separately. The digital meter shows the intensity and life timely.
2. Two groups of conveying system are independent, convey belt speed frequency controlled, the highest speed can be up to 60m/minutes.
3. Three groups of lamps have independent heat removal system, equipped two groups of adsorption.
4. It has conveyor belt rectify a deviation system with adsorption; adopt imported "TEFION" belt.


MAIN SPECIFICATIONS:

Convey speed

60m/minute

UV lamp power

7.2kw×1pcs×3 grade/8.8kw×2pcs×3 grade

Wrinkle lamp power

80W×3pcs×2 grade

Effective curing width

1100mm

Conveyor motor power

400W x 2

Induced-draft fan power

0.75kW x 2

Exhaust fan power

 0.75KW x 3

Machine weight

2200kg

Machine dimensions (L x W x H)

6030×1700×1380mm
