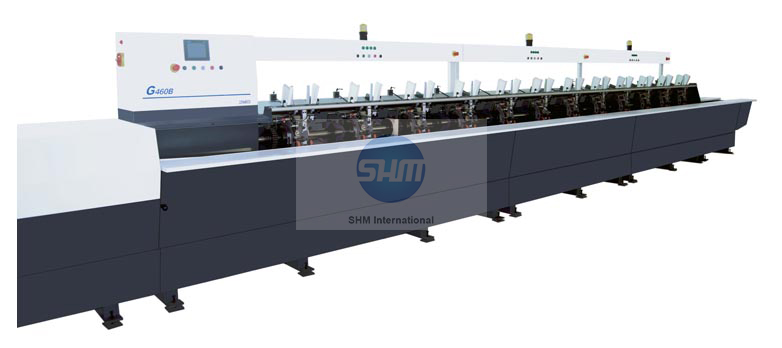

G460B AUTOMATIC GATHERING MACHINE
INTRODUCTION:
G460B automatic gathering machine ensures high net output .The double gripper system and the vertical transport of signatures are combined in this machine with modern electronics and latest design. It can be used either as a stand –alone machine or connected inline with Superbinder/Challenger/Sunshine.
Automatic signature inspection system that can detect miss-feeds, multi-feeds and paper jams.
Reject gate for faulty signatures to ensure a non-stop production
Product monitoring fault diagnostics and quality control through the touch screen
1:1 or 1:2 speed mode
Hand feeding station
Criss-cross delivery
Automatic image recognition system as option
MAIN SPECIFICATIONS:
|
Model
|
G460B/8
|
G460B/12
|
G460B/16
|
G460B/20
|
G460B/24
|
|
No. of stations
|
8
|
12
|
16
|
20
|
24
|
|
Book length
|
196-460mm
|
||||
|
Book width
|
135-280mm
|
||||
|
In line speed
|
Max.6000 pcs/h
|
||||
|
Off line speed
|
Max.4800 pcs/h
|
||||
|
Weight
|
3000kg
|
3500kg
|
4000kg
|
4500kg
|
5000kg
|
|
Machine length
|
10736mm
|
13022mm
|
15308mm
|
17594mm
|
19886mm
|
