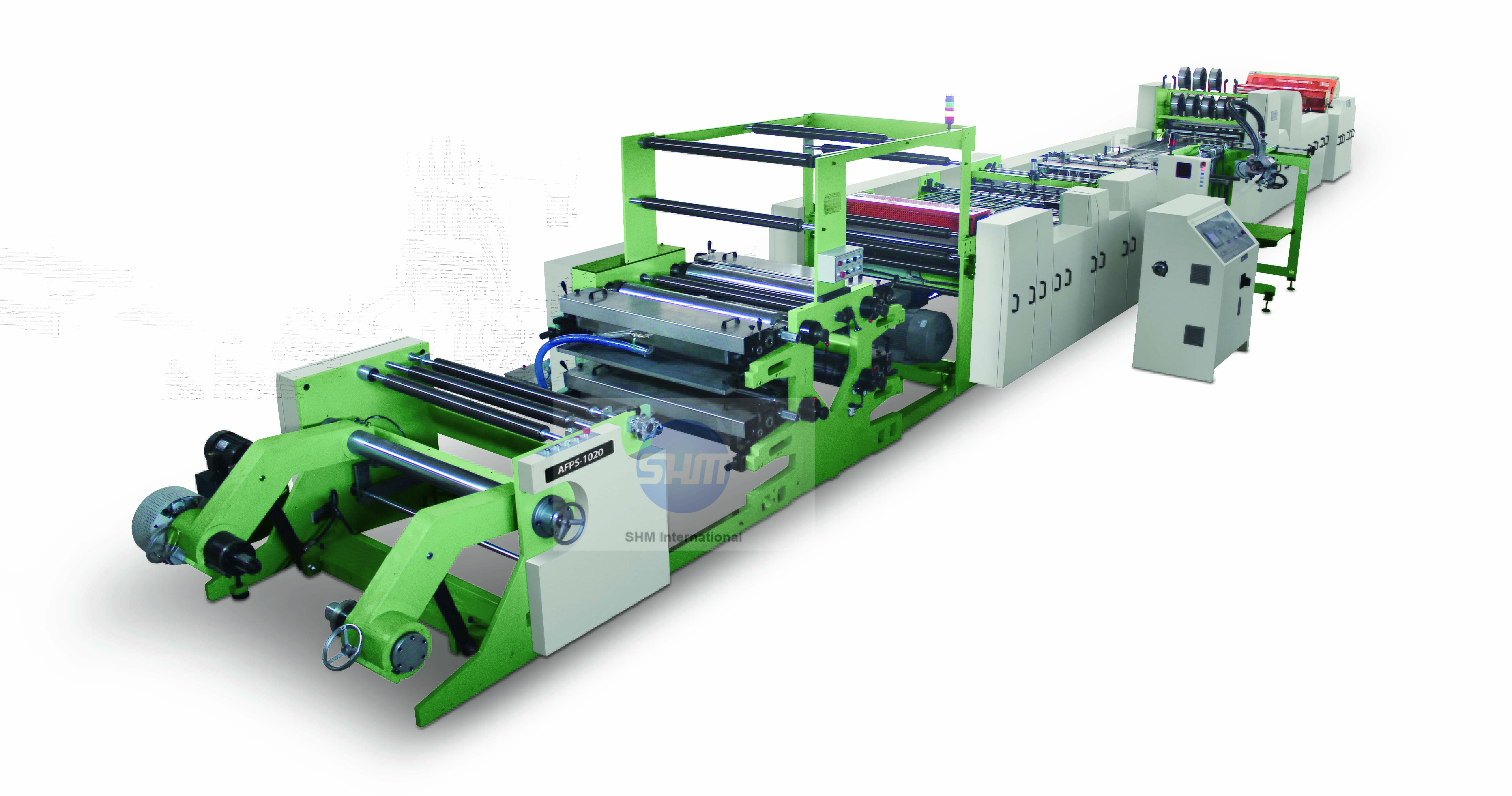

AFPS-1020 FULLY AUTOMATIC EXERCISE BOOK PRODUCTION LINE







INTRODUCTION:

Fully Automatic exercise book production line is a highly sophisticated solution for the fabrication of staple pin exercise books, drawing books, etc. Basic configuraton indludes: reel feeding, flexo ruling, sheeter, sheet collecting, overlapping, cover feeding, stitching, folding, spine pressing, face trim, side trim and delivery.


MAIN SPECIFICATIONS:


Model

AFPS-1020

Max reel diameter

1200mm

Printing cutting length

290-430mm

Printing width

680-1020mm

Max printing speed

250m/min

Number of sheets layer

5-50sheets

Inner page thickness

55-120g/m²

Index page thickness

100-200g/m²

Cover thickness

150-300g/m²

Book size

Min.140x160mm

Max.210x297mm

Max output frequency

40times

Max stitching thickness

5mm

Main motor power

30kw

Dimension

2100x3500x2400mm

Weight

22000kg
