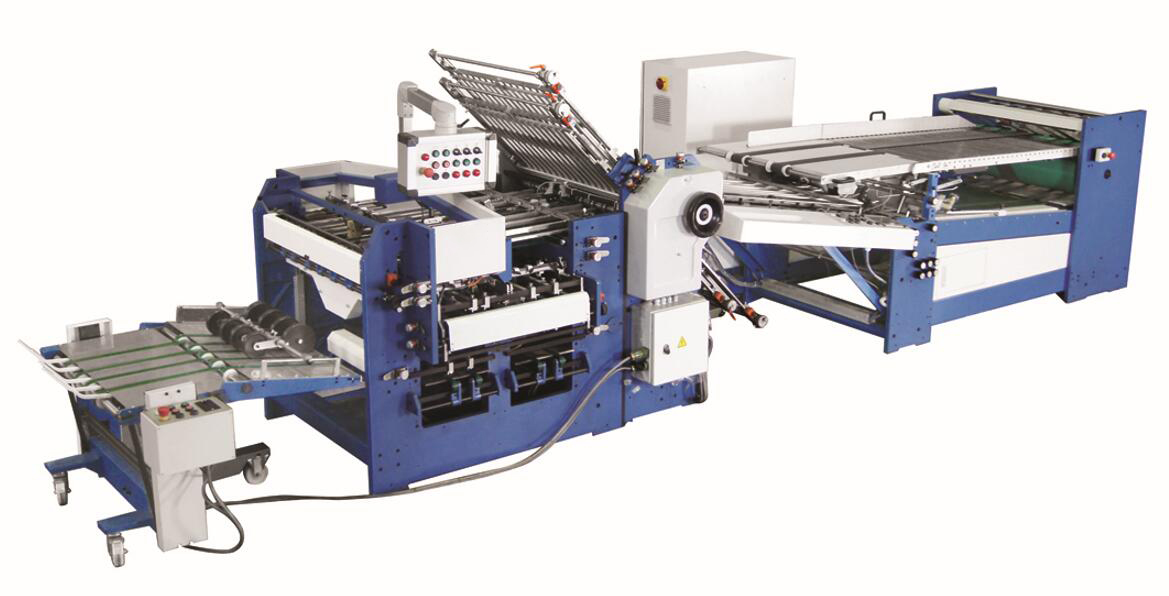

ZYHD780A-H ELECTRONIC KNIFE HYBRID FOLDING MACHINE
INTRODUCTION:

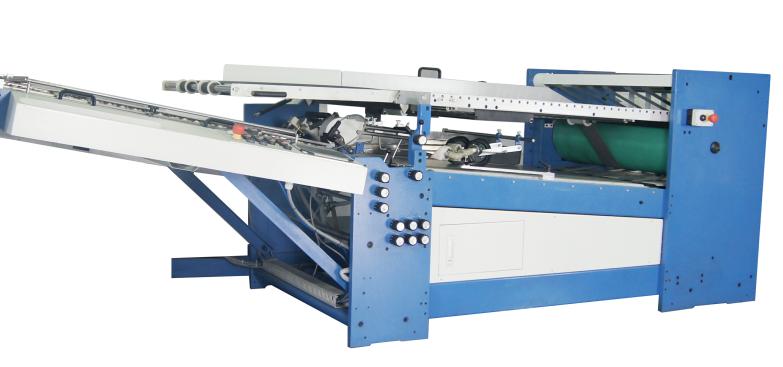

This advanced folding machine consists of a stack feeder, four buckle plates for folding, three independent servo-controlled knives, and a sheet collector. The machine is engineered for folding single sheets of various types, including booklets, pamphlets, instruction manuals, and letters. It features a stack feeding system and employs a hybrid folding technique, using four buckle plates and three knives. When using the buckle plates, the machine can perform parallel, accordion, and roll folds. During hybrid folding, the machine executes vertical, mixed four-fold patterns, and the folded sheets are collected and stacked by the sheet collector. The machine is configured for 32-page regular or reverse folding.
MAIN SPECIFICATIONS:
| Max folding paper size | 780x1160 mm |
| Min sheet size |
1-buckle folding: 150x200mm 1-buckle 1-knife folding: 200x300mm 1-buckle 2-knife folding: 300x400mm 1-buckle 3-knife folding: 390x540mm |
| Sheet thickness | 40-200gsm |
| Roll speed range | 650mm |
| Max rotary feeder height | 55-645mm |
| Buckle quantity | 4sets |
| Max vertical folding tines | 3times |
| Roll speed range | 75-210 m/min |
| Max folding knife working frequency | 350stroke/min |
| Folding speed | 210x297parallel one folding27000 sheet/hr 540x780 parallel one folding12000 sheet/hr |
| Power | 7.14kw |
| Weight | 3000kg |
1. Intelligent Control System:
Utilizes imported electrical components and a programmable logic controller (PLC) for seamless operation. Variable frequency speed control and imported servo motors offer high-precision knife control and simplified maintenance.
2. Fault Detection and Protection:
The machine halts automatically when it detects double-sheet feeding or paper jams, ensuring safe operation.
3. Stack Feeding:
The stack feeder enables continuous sheet feeding, with automatic sheet separation by air blowing, improving production efficiency.
Utilizes imported electrical components and a programmable logic controller (PLC) for seamless operation. Variable frequency speed control and imported servo motors offer high-precision knife control and simplified maintenance.
2. Fault Detection and Protection:
The machine halts automatically when it detects double-sheet feeding or paper jams, ensuring safe operation.
3. Stack Feeding:
The stack feeder enables continuous sheet feeding, with automatic sheet separation by air blowing, improving production efficiency.
4. Threaded Folding Rollers:

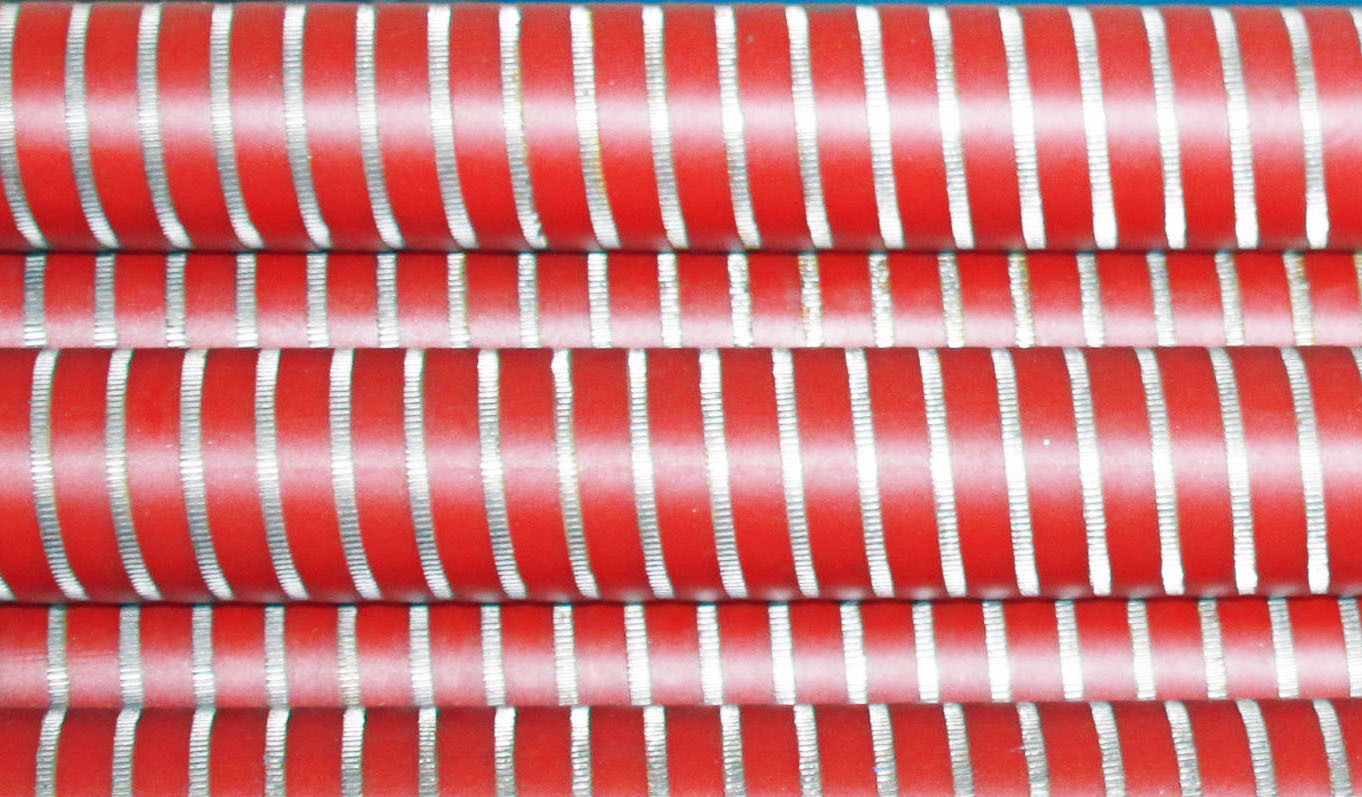

Utilizes imported polyurethane strips and special steel threaded rollers, increasing paper grip area by 75% compared to traditional rollers, ensuring durability.
5. Bi-Directional 32-Sheet Folding Capability:
This machine is equipped with the ability to perform both forward and reverse folds on 32-sheet configurations. Whether you need standard forward-folding or reverse-folding on 32-sheet projects, this feature solves layout challenges efficiently.
6. On-Demand Lubrication:
The central oil lubrication system is equipped with timing and quantification, and low oil pressure triggers an alarm.
7. Paper Conveyance:
Utilizes wide three-hole polyurethane suction wheels to separate and convey the paper sheets.
8. Vacuum Sheet Separation:
Utilizes special polyurethane vacuum suction wheels, ensuring scratch-free handling of sensitive paper types.
9. Punching and Creasing:
Optional punching and creasing can be done during the folding process.
10. Counting Function:
Photocell switches manage cumulative and batch counting.
11. Digital Displays:
Various machine adjustment points feature corresponding rulers and digital displays, making adjustments more intuitive.
12. Selectable Fence Folding Function:
The machine includes a swiveling paper redirection mechanism on its fence panel. This allows for quick and convenient selection of various specialized folding types, such as parallel folds, accordion folds, and roll folds, streamlining the operation process.
13. Selectable Buckle Folding:
The buckle plates feature swing deflection for quick setup, making different folding styles easy to achieve.
14. Auto-Collect Function:
The folded sheets are automatically and orderly output, with a standard regular sheet collector configured.
