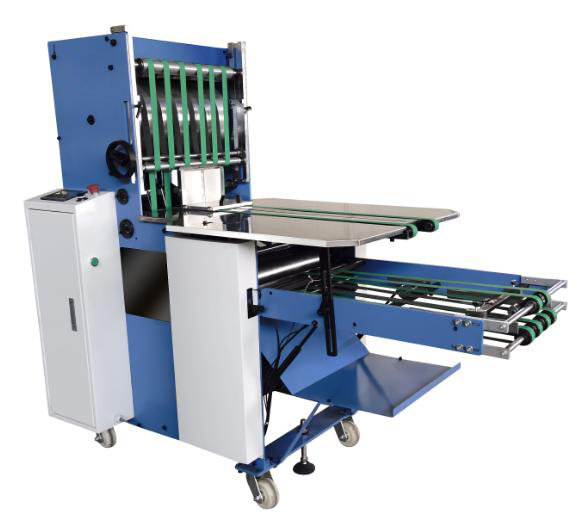

LSZ460A VERTICAL PAPER RECEIVING MACHINE



INTRODUCTION:

Designed for collating single sheets of paper after they've been folded, such as booklets, manuals, and letters.


MAIN SPECIFICATIONS:

Sheet input size Max.460x310mm
Min.135x850mm
Speed 40-180m/min
Collating quantity Max.700mm
Collating range Max.150/min
Interface adjustment 380-930mm
Power 0.95kw
Weight 550kg

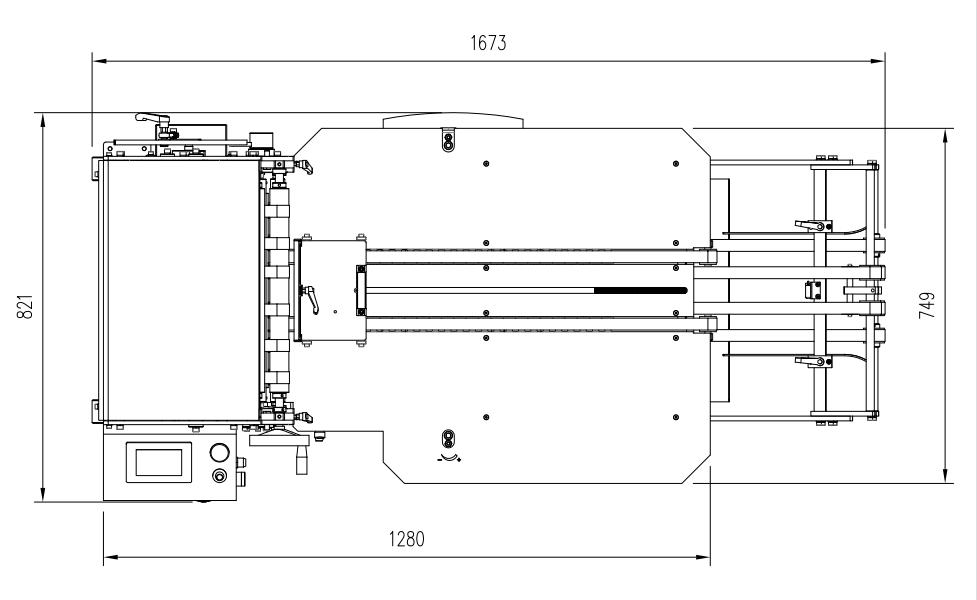

Dimension 1660x904x1450mm






MAIN FEATURES:

1. Automated Flattening and Collating Functionality

(1) The sheets are directly fed from the folding machine's exit into a synchronized conveyor belt, go through a roller-press mechanism for two rounds of flattening, and then into a synchronized hug-belt for slow clamping and forward movement. Finally, they continuously enter the collating platform vertically.

(2) High-speed collating with excellent flattening quality, mechanical stability, and easy operation make it a labor-saving device.

(3) The processed sheets don’t require binding and stack neatly, ready for saddle stitching or perfect binding, thus enhancing the binding quality.

(4) Upon completion of folding, the booklets are automatically and sequentially collated, reducing the workload on the folding staff and decreasing the need for additional labor.

2. Automated Control System Functionality

(1) The electrical system is entirely independent, with touchscreen and PLC controls for more stable and reliable operation.

(2) The machine is ready for use upon powering up and requires no modifications to connect with other devices. It employs a spring compression mechanism to consolidate the folded sheets, which are then vertically aligned via rotating rollers.

(3) Equipped with multiple drive motors controlling paper feeding, collating, and the paper tray's vertical adjustment. Speed can be adjusted individually, offering convenience for collation adjustment.

(4) Capable of flattening, count marking, and vertical collation of folded sheets.

(5) Compatible with various folding methods and can be connected to different models of folding machines for collating.

(6) At the end of a batch task, a single button ends the operation. The remaining sheets will be collated within your set time and the machine will automatically shut down.
