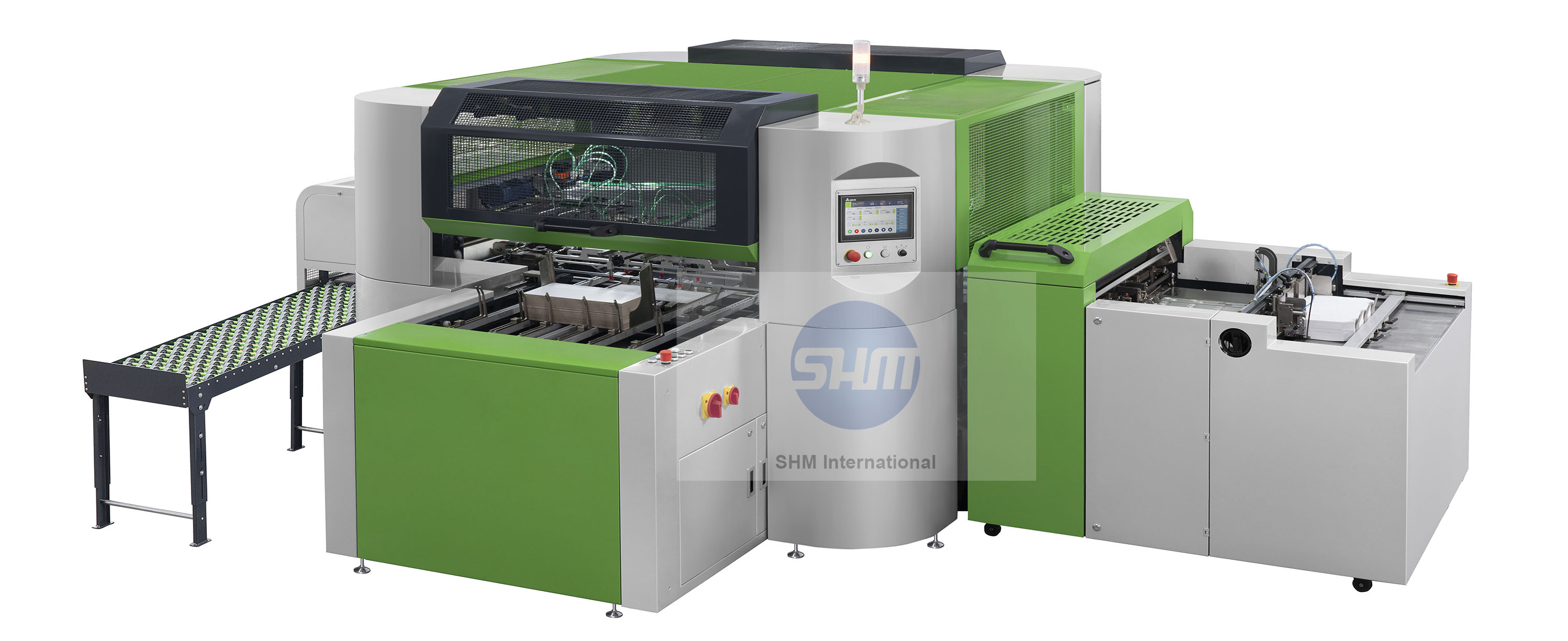

ACM18 AUTOMATIC CASE MAKING MACHINE













INTRODUCTION:

Little Cyclone is characterized by many advantages such as intelligence, fastness,convenience and simplicity in operation. It is mainly applicable in the packaging and book and periodical industry. It is widely used to package mobile phones, electronics, electric appliances, cosmetics, foodstuff, clothing, shoes, cigarettes, liquor and wine products.


MAIN FEATURES:

1.The machine adopted a motion controller and servo moto controller for remotely monitoring the data and detecting the malfunctions (if the machine is in trouble, the software system will actually inform the operator of the after sales service personnel) and updating the software.
2.It can quickly access to the factory ERP systems. The data of produc­tion and fault, etc. can enter the system.
3.Very gorgeous consumable manufcture appearance design, more beautiful, more safe.
4.Split assemble style make the assemble process simple and smart.


WORKING PROCESS:


 R18 CASE MAKER PROCESS.jpg


MAIN SPECIFICATIONS:


Case size

Max.800x450mm

Min.200x100mm

Round corner case

Max.550x450mm

Min.200x130mm

Soft spine case

Max.680x360mm

Min.200x100mm

Cloth thickness

120-300gsm

Board Thickness

1-4mm

Spine size

Hard spine:Max.8mm

Soft spine:Max.20mm

Speed

Standard case:10-38pcs/min

Round corner case:10-25pcs/min

Motor power

15.6kw 3Phase 50Hz

Power

2x4.5kw

Dimension

4600x3300x1800mm

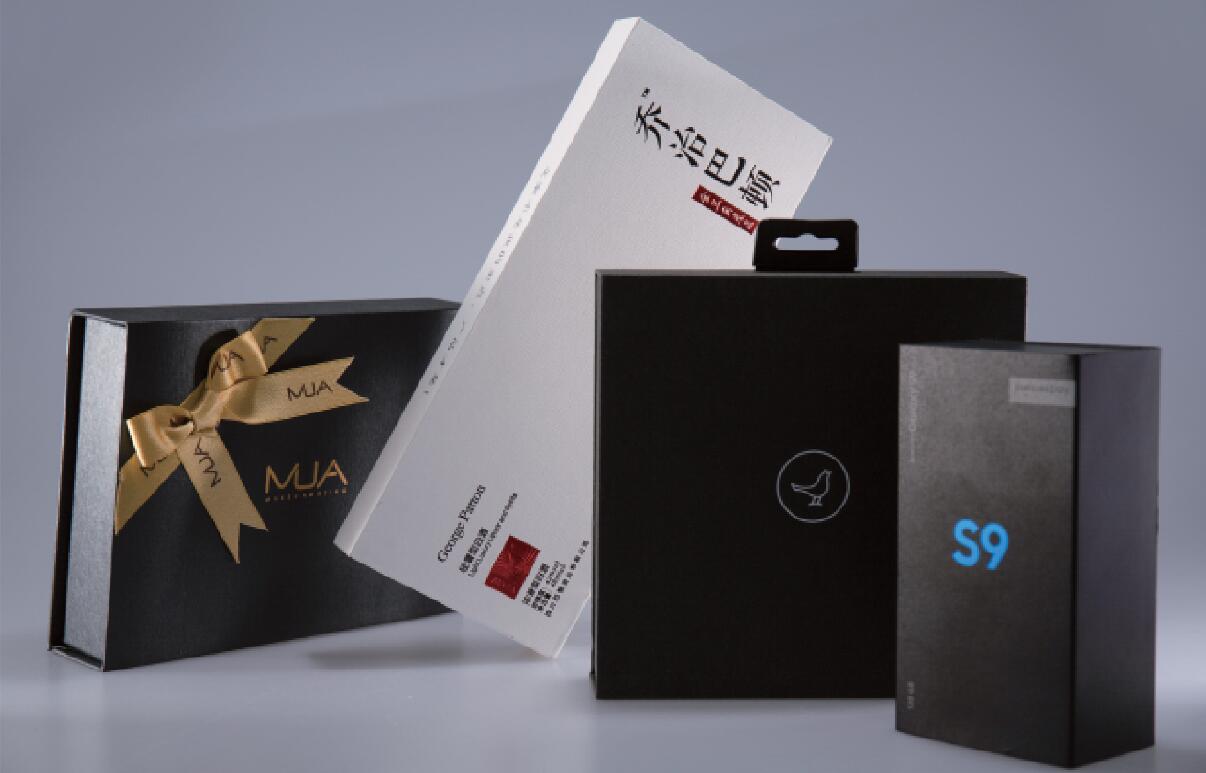

CASE TYPE:
