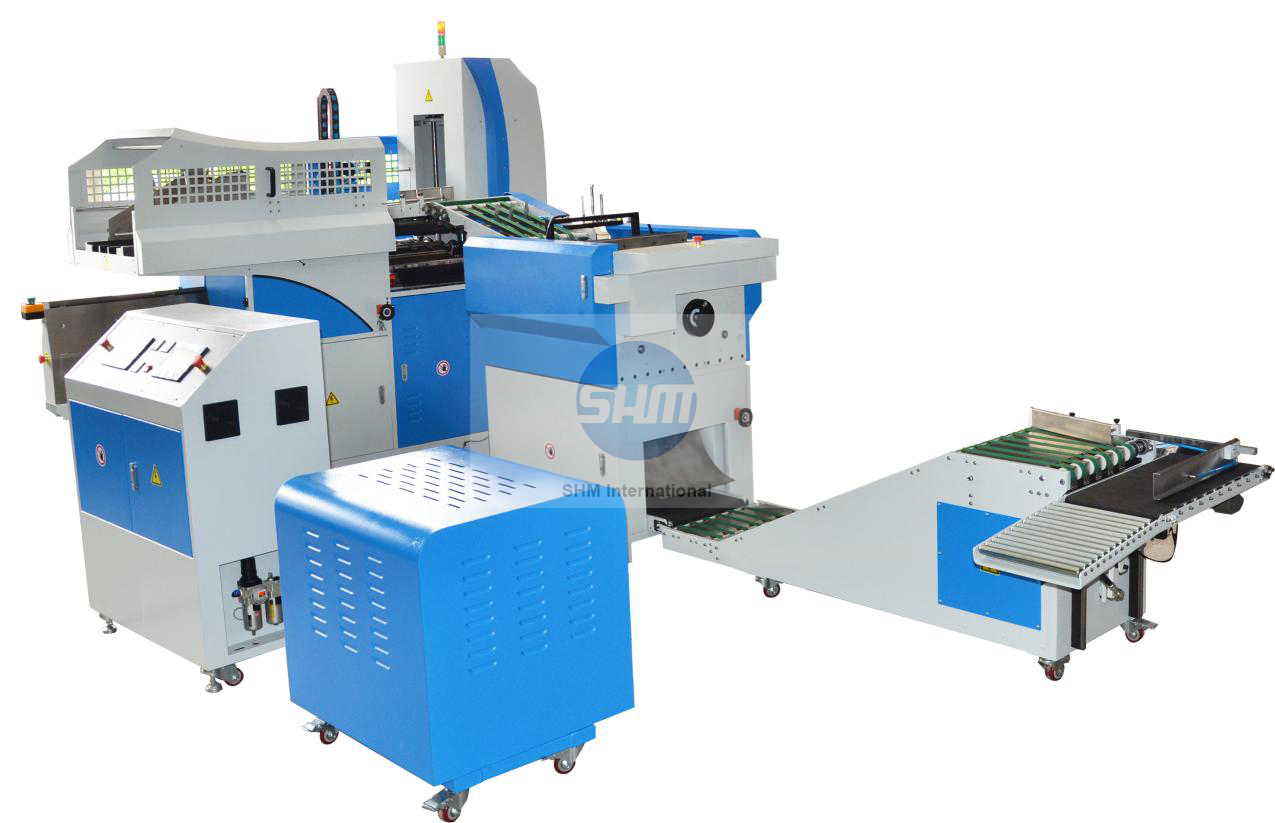

MF-FAC390A 3/4 AUTO CASE IN AND JOINT FORMING LINE

(TWO PRESSING & CREASING STATIONS)






MAIN SPECIFICATIONS:

Model

MF-FAC390A

Hard case chipboard size

Max.380x270mm

Min.100x100mm

Book block thickness

4-60mm

On-line speed

600pcs/hr

Voltage

380V 3Phase 50Hz

Power

 9kw

Weight

2000kg

Dimension

4950x2650x2000mm



MAIN FEATURES:

Model MF-FAC390A is based on model MF-FAC390, with two stations of pressing & creasing unit, its speed is greatly increased. It is widely used for notebooks, photo books, picture books and other hard cover books. It adopts feeder for auto cases delivery with book back creasing function; automatically cases in block with alignment and pressing device to ensure a precise casing in effect; automatically presses and creases the book; and automatically delivers the finished products. It is a good partner for hard cover book production.

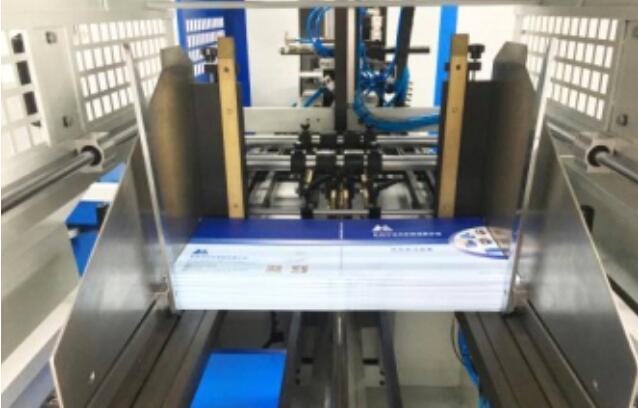

1. Auto pushing cases
 Apply feeder system to push cases

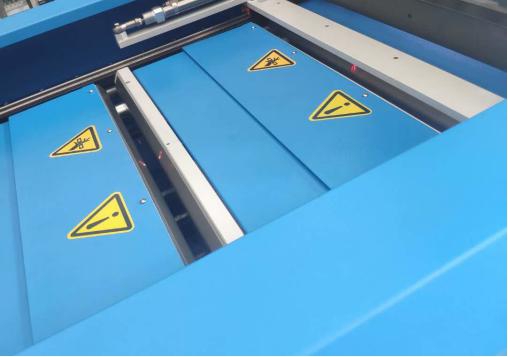

2. Cases creasing with heating
 Creasing & heating the book cases to make casing more precise

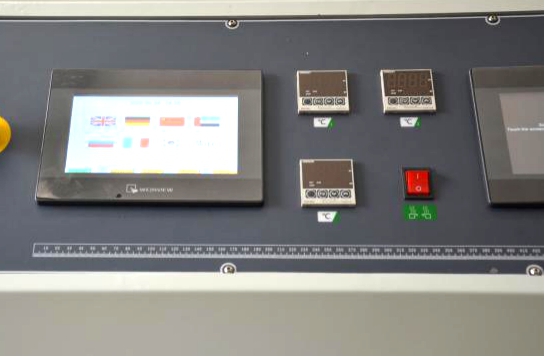

3. Individual controlling system

Use touch screen to make the operation more convenient

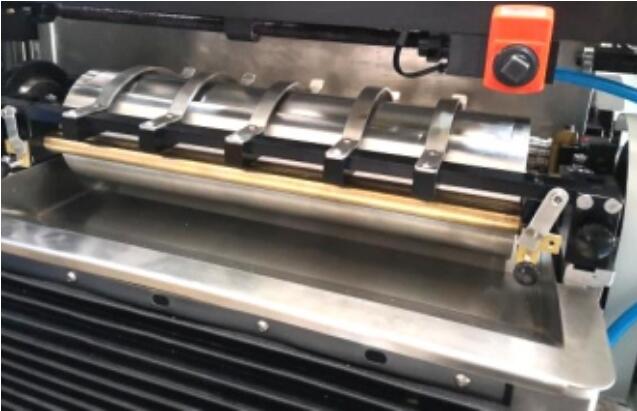

4. Gluing Part
Double gluing to the head of the block to make the book more durable




5. Two stations of Pressing & Creasing Unit
Mechanical arms deliver books, which does not scratch the cover

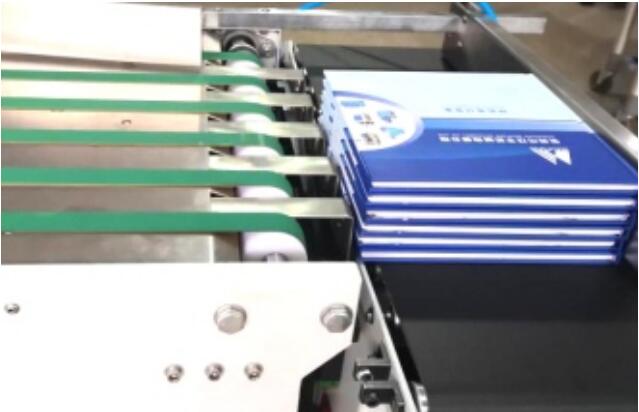

6. Auto book collector
 Auto product delivery system, saves the labor time
