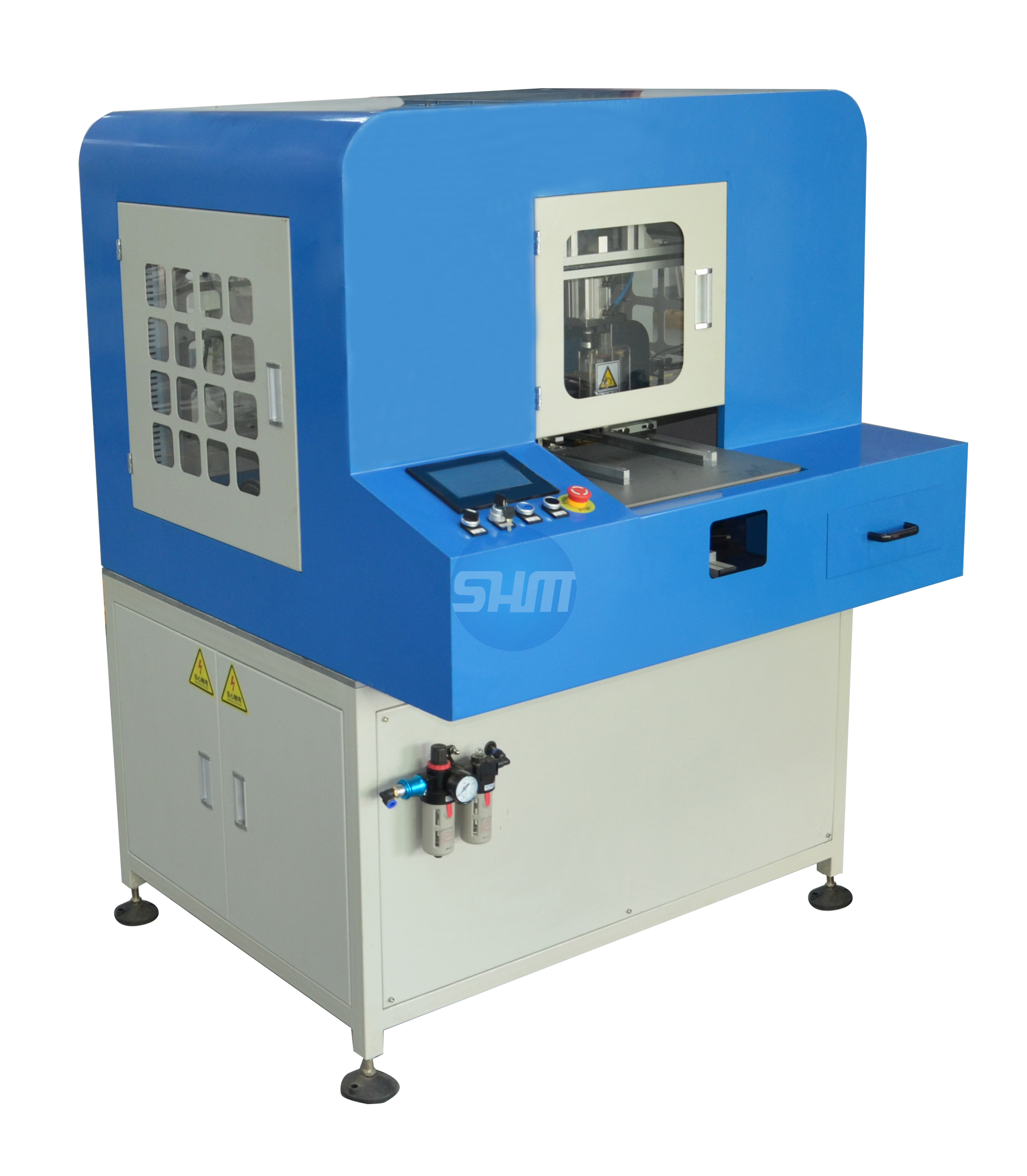

MF-SEM450 SEMI AUTO ELASTIC BAND INSERTING MACHINE







MAIN SPECIFICATIONS:


Model

MF-SEM450

Cover size

Max.310x450mm

Min.140x190mm

Elastic band margin

15-20mm

Elastic band size

6-10mm

Case thickness

1.5-4mm

Speed

700pcs/hr

Power supply

380V 50Hz

Power

6kw

Weight

1000kg

Dimension

1300x1200x1600mm


MAIN FEATURES:

This machine is used forinserting the elastic band to hard cover. lt manually delivers the cover,automatically cuts the elastic band, automatically inserts and sticks the elastic band into the cover, greatly enhancing the working efficiency and product quality.

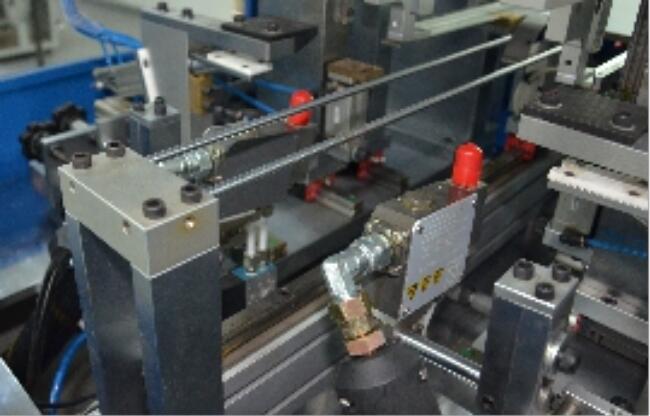

1. Auto Punching

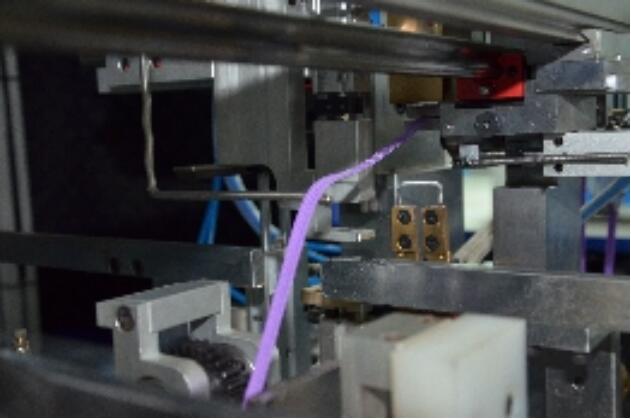

2. High temp elastic band cutting




3. Hot melt glue spraying system
