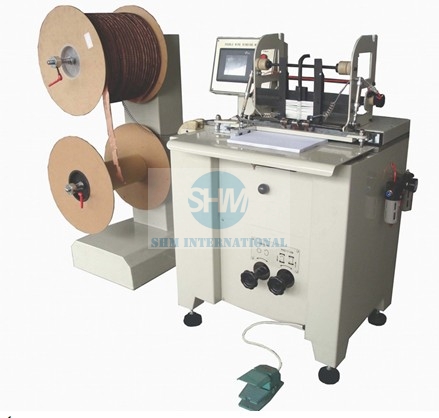

DCA-520 DOUBLE WIRE BINDING MACHINE
INTRODUCTION:
The machine is used for binding double wire books, notebooks, calendars, etc. With the integration of automatic cutting, loops-counting, skip binding and closing, it increased the production efficiency and lowered the cost remarkably.
MAIN SPECIFICATIONS:
|
Max work speed |
1000volume/hour |
|
Binding capacity |
1/4"-3/4" |
|
Max binding length |
520mm |
|
Air pressure |
5-8bar |
|
Work-bench dimension |
680x310mm |
|
Weight |
350kg |
|
Dimension |
1400x750x1350mm |
