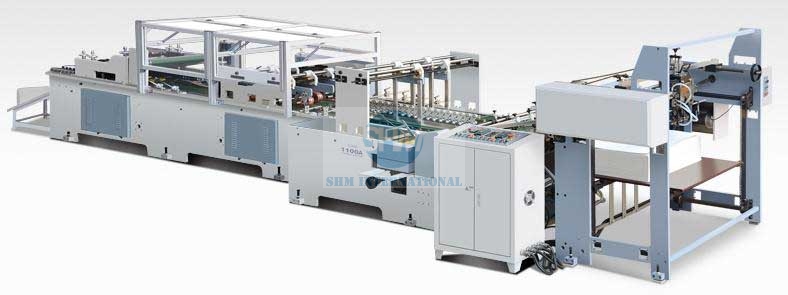

ZB1100A HANDBAG FORMING MACHINE
MAIN FEATURES:
1. The machine is suitable for mass production of the paper bags of special paper and other different types of polished and laminated paper (need creased sheet of paper as raw material), which is the first choice for processing high-grade and luxury handbags.
2. The paper is automatically delivery by feeder(speed can be regulated by variable frequencies) then automatically positioned by the line aligning system, eventually output paper bag tube through gluing, tube folding and impressing process.
3. This machine adopts a number of proprietary technologies by which handbag forming can be higher, quicker and control adjustment more convenient.
2. The paper is automatically delivery by feeder(speed can be regulated by variable frequencies) then automatically positioned by the line aligning system, eventually output paper bag tube through gluing, tube folding and impressing process.
3. This machine adopts a number of proprietary technologies by which handbag forming can be higher, quicker and control adjustment more convenient.
MAIN SPECIFICATIONS:
|
Sheet size |
Max.1020x600mm Min.600x350mm |
|
Sheet weight |
150g-350g/m² |
|
Bottom width |
60-150mm |
|
Power |
6.5kw |
|
Speed |
70bags/min |
|
Weight |
4000kg |
|
Dimension |
8075x1960x1730mm |
