RZFD-330TF/450TF SQUARE BOTTOM PAPER BAG MACHINE
WITH TWISTED & FLAT ROPE & 2/4 COLOR PRINTING ONLINE
INTRODUCTION:
Fully automatic square bottom paper bag machine used to produce hand-held paper bags with handles.This machine is especially suitable for mass production of shopping bags in food and clothing industries. The machine uses a hand-pull machine to make the rope and paper roll into a hand-handle.The hand-handle is sent to the sticking unit through the conveying system, and then the roll paper that is printed on the primary color paper is pre-pointed and pasted.Glue the film position and automatically paste the handle, and then the host machine will glue the paper with the handle, form a tube, cut, indent, coat the bottom, shape the bottom of the bag. and transport it out of the bag.The whole process is synchronized at one time carry out. This machine adopts a high-speed motion controller(CPU) imported from Germany and controls the operation of the servo through a high-speed bus to ensure stable motion and smooth motion curve.It is the preferred automatic portable5quare bottom paper bag equipment for most printing and packaging manufacturers.
MAIN FEATURES:
1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control integrated with optical fiber. Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SNCK photoelectric eye correction,tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
MAIN SPECIFICATIONS:
|
Model
|
RZFD-330TF
|
RZFD-450TF
|
|
Cutting length
|
270-530mm 270-430mm(auto)
|
270-530mm 270-430mm(auto)
|
|
Paper bag width
|
120-330mm 200-330mm(auto)
|
220-450mm 240-450mm(auto)
|
|
Paper bag bottom width
|
60-180mm
|
90-180mm
|
|
Paper thickness
|
60-150g/m² 80-150g/m²(auto)
|
80-150g/m² 80-150g/m²(auto)
|
|
Machine speed
|
10-100m/min
|
10-100m/min
|
|
Paper bag speed
|
30-180pcs/min
|
30-120pcs/min
|
|
Paper roll width
|
380-1050mm 620-1050mm(auto)
|
590-1290mm 650-1290mm(auto)
|
|
Roll paper diameter
|
1300mm
|
1300mm
|
|
Power
|
380V 3phase 4line 50.5kw
|
380V 3phase 4line 50.5kw
|
|
Weight
|
20200kg
|
20500kg
|
|
Dimension
|
18000x8000x2800mm
|
18000x8000x2800mm
|

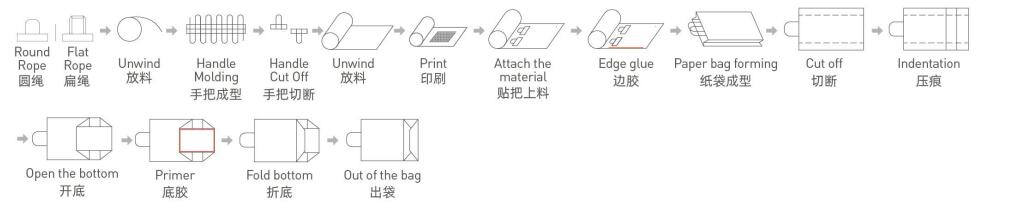

THE FLOW CHART:
