HOME > PRODUCTS > PAPER PRODUCT SYSTEM > SHOPPING BAG MACHINEKL-T Series Automatic Paper Bag Making Machine with Top Reinforced Card Pasting & Top Folding & Hole Punching














KL-T SERIES AUTOMATIC PAPER BAG MAKING MACHINE

WITH TOP REINFORCED CARD PASTING & TOP FOLDING & HOLE PUNCHING







MAIN SPECIFICATIONS:


Model

KL-220T

KL-350T

KL-450T

Paper bag width

120-330mm

180-350mm

220-450mm

Paper bag bottom /gusset

60-120mm

70-150mm

90-170mm

Paper sheet width

380-700mm

530-1040mm

600-1240mm

Paper sheet length

240-440mm

290-600mm

320-600mm

Paper types/paper weight

(230-300g after die cutting process)

Kraft paper 120-200g

Art paper+laminated PP 120-210g

Kraft paper 120-200g

Art paper+laminated PP 157-210g

White Cardboard 180-250mm

Grey paperboard laminated PP film 150-300g

Card roll diameter

Φ600mm

Φ600mm

Φ600mm

Reinforced card thickness

100-350GSM

100-350GSM

100-350GSM

Reinforced card width

100-160mm

150-220mm

160-260mm

Reinforced card length

25-50mm

25-50mm

25-50mm

Distance between holes

60mm、100mm

80mm、120mm

100mm、140mm

Hole diameter

Φ4mmΦ5mmΦ6mm

Φ4mmΦ5mmΦ6mm

Φ4mmΦ5mmΦ6mm

Working speed

50-85pieces/mm

40-75pieces/mm

40-75pieces/mm

Glue type

Water glue/hot glue system

Water glue/hot glue system

Water glue/hot glue system

Power

15kw

15kw

15kw

Weight

12000kg

13000kg

14000kg

Dimension

16000x1930x2900mm

16000x1930x2900mm

16300x2100x2900mm

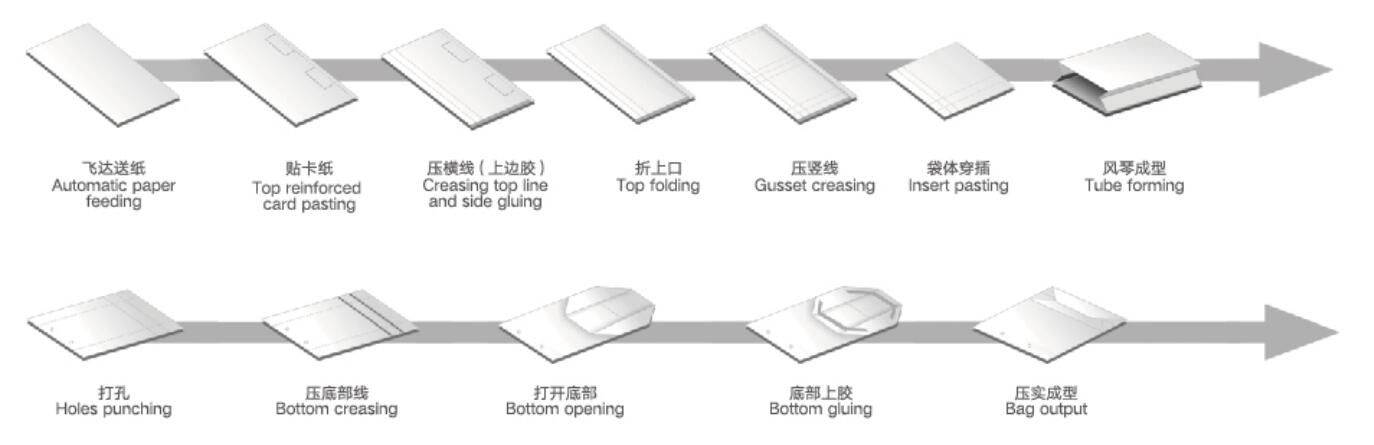

THE FLOW CHART:
