HOME > PRODUCTS > PAPER PRODUCT SYSTEM > SHOPPING BAG MACHINEKL-350H/450H Automatic Paper Bag Making Machine with Paper Twisted Handle

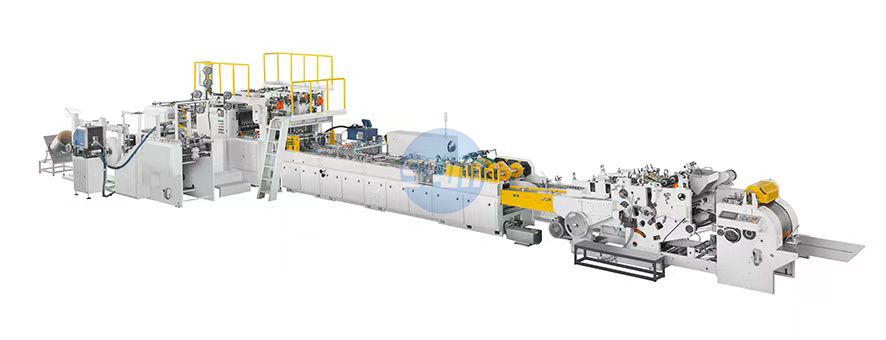

KL-350H/450H AUTOMATIC PAPER BAG MAKING MACHINE WITH PAPER TWISTED HANDLE







MAIN SPECIFICATIONS:


Model

KL-350H

KL-450H

Sheet size

Max.600-1040mm

Min.350-545mm

Max.600-1240mm

Min.350-600mm

Sheet weight

100-200gsm

100-220gsm

Paper bag width

180-350mm

200-450mm

Paper bag bottom/gusset

80-150mm

90-170mm

Paper bag length

250-480mm

250-480mm

Top fold width

40-60mm

40-60mm

Handle patch length

188.5mm

188.5mm

Handle patch width

30-50mm

40-50mm

Handle patch weight

100-300g

100-300g

Handle patch roll diameter

Φ1000mm

Φ1000mm

Handle patch roll width

70-100mm

80-110mm

Paper rope diameter

Φ4-6mm

Φ4-6mm

Handle rope height

170-185mm

170-195mm

Working speed

40-75pcs/min

40-75pcs/min

Glue type

Water glue

Water glue

Power

15kw

22kw

Weight

20000kg

20000kg

Dimension

16100x5100x3100mm

16100x5600x3100mm

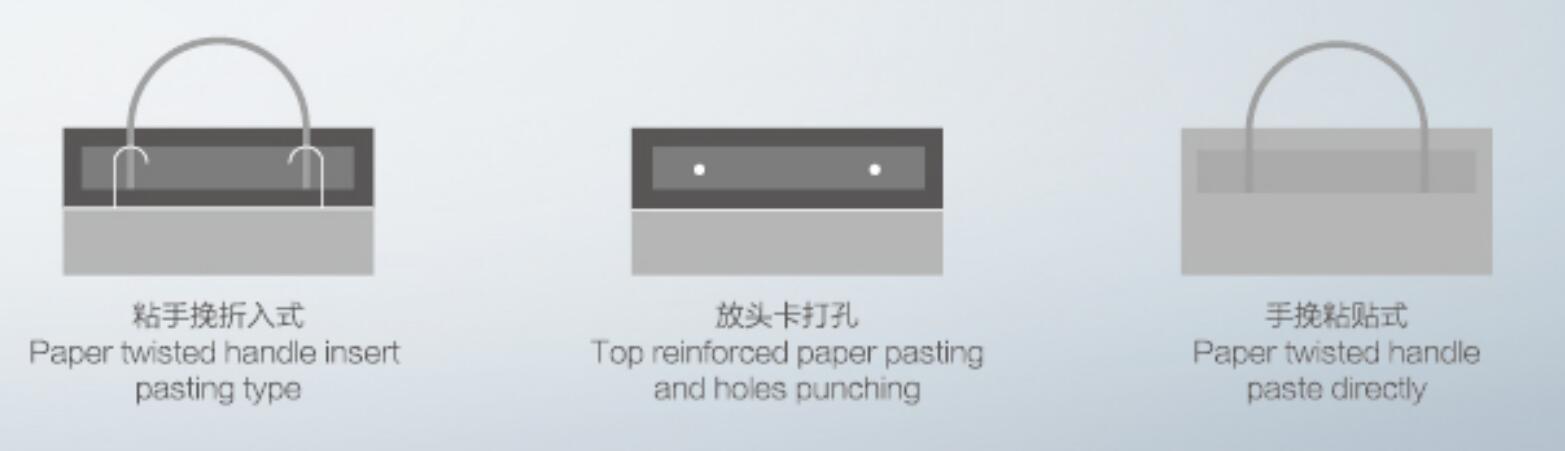

THREE DIFFERENT TYPES OF PAPER BAG:
