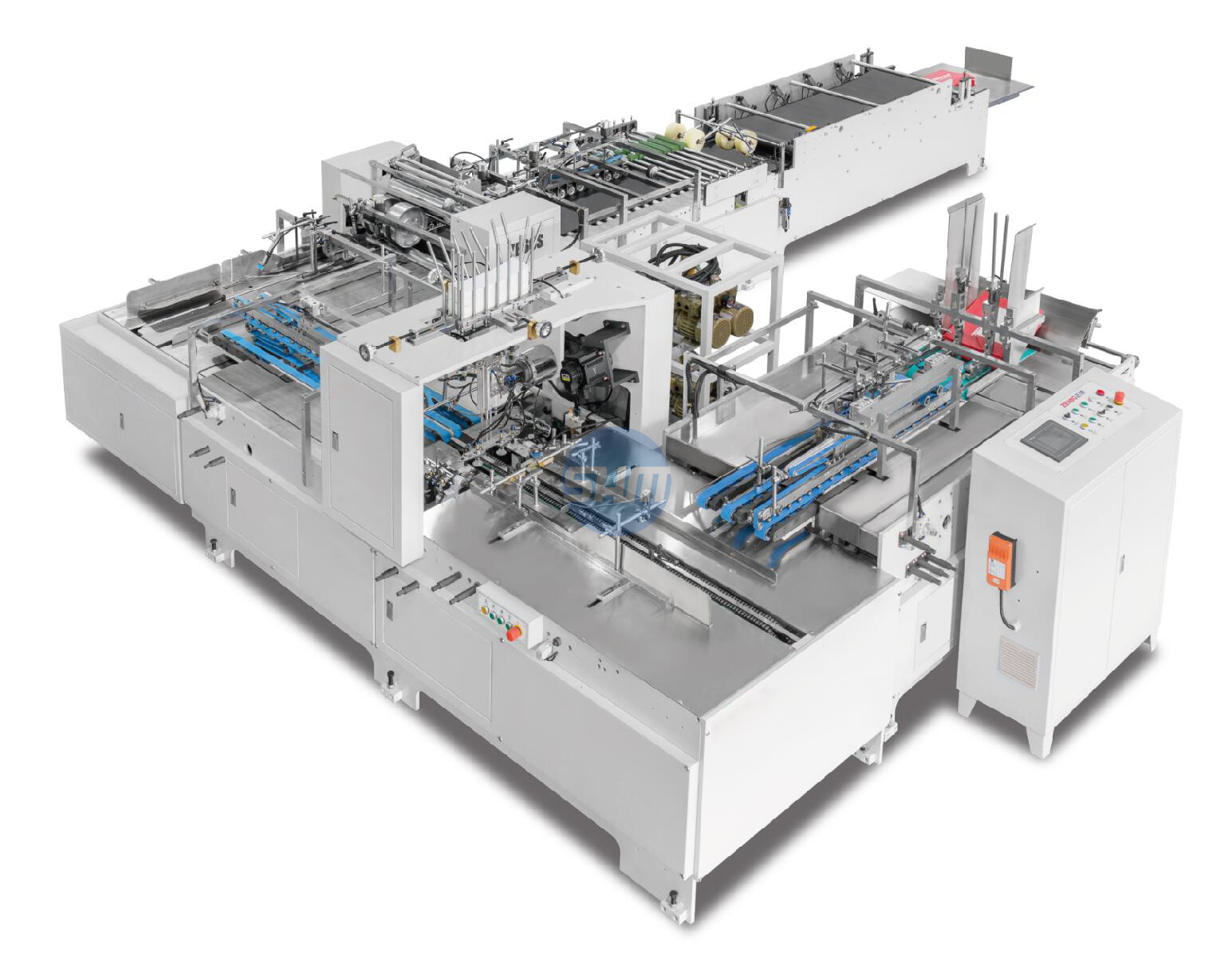

ZB60S SHEET-FEEDING PAPER BAG BOTTOM GLUING MACHINE







MAIN FEATURES:

ZB60S Handbag bottom gluing machine (independent innovation), adoptsservo motor drive,PLC control system, achieve automatic bottom cardboard inserting function. lt meets the special requirement of boutique paper bag making.
The basic working flow of this machine is automatic feeding the unclosed-bottom paper bag, bottom opening, bottom cardboard inserting, two times positioning, coated water base (or spray gluing), bottom closing and compaction output the paper bag.
With servo system for bottom cardboard taking and bottom cardboard inserting, ensure the bottom cardboard process is stable and high precisely. Use gluing wheel to coated the water base glue on bag bottom(or spray gluing), make the glue is evenly coated on full bottom , not only improve the bag quality, but also increase the profit for customers.


MAIN SPECIFICATIONS:


Model

ZB60S

Sheet weight

120-250gsm

Bag width

180-430mm

Bag height

230-500mm

Bottom width

80-170mm

Bottom cardboard weight

250-400gsm

Bottom cardboard width

74-164mm

Bottom cardboard length

174-424mm

Speed

40-60bags/min

Glue type

Water base glue

Production power

7.2kw

Total power

12kw

Voltage

380V

Weight

4000kg

Dimension

5100x7000x1733mm

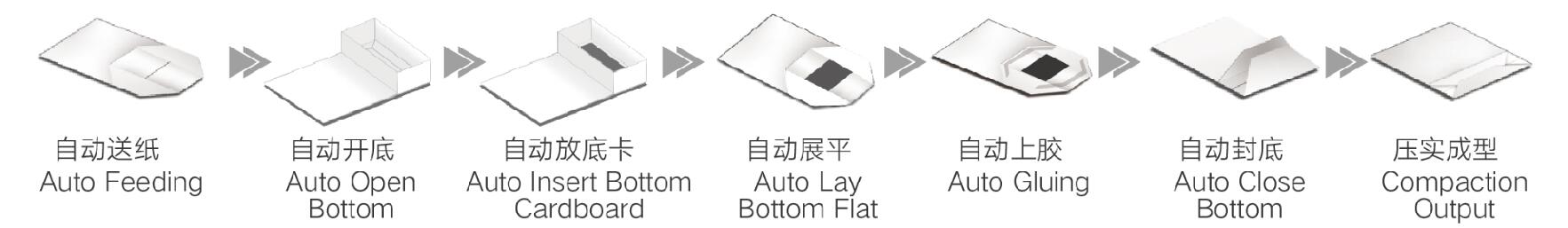

THE FLOW CHART:
