RZFD-450B HIGH SPEED SQUARE BOTTOM PAPER BAG MACHINE
INTRODUCTION:

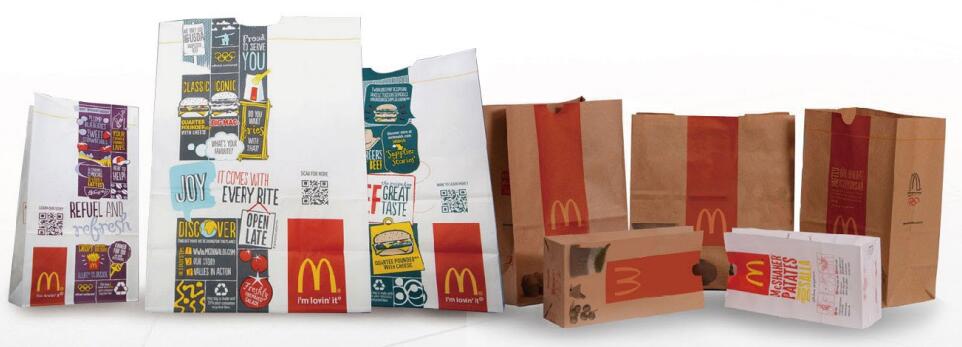

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time. The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags,bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
MAIN FEATURES:
1.Use France Schneider Touch Screen Human-Computer Interface, operate and control easily.
2.Adopt Germany Original REXROTH PCControlintegrated with optical fiber.Thus ensure stable and high speed running.
3.Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.
4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPCadopt ltaly SELECTRA, Reduce adjustment time.
MAIN SPECIFICATIONS:
|
Model |
RZFD-450B |
|

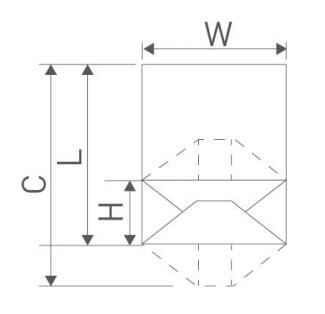

Paper bag length |
380-760mm |
|
Paper bag width |
220-450mm |
|
Paper bag bottom width |
100-220mm |
|
Paper thickness |
80-150gsm |
|
Paper bag speed |
30-120pcs/min |
|
Paper roll width |
630-1370mm |
|
Roll paper diameter |
Φ1300mm |
|
Paper inner diameter |
Φ76mm |
|
Power |
380V 3phase 4line 17.5kw |
|
Weight |
10500kg |
|
Dimension |
12000x3800x2200mm |
THE FLOW CHART:
