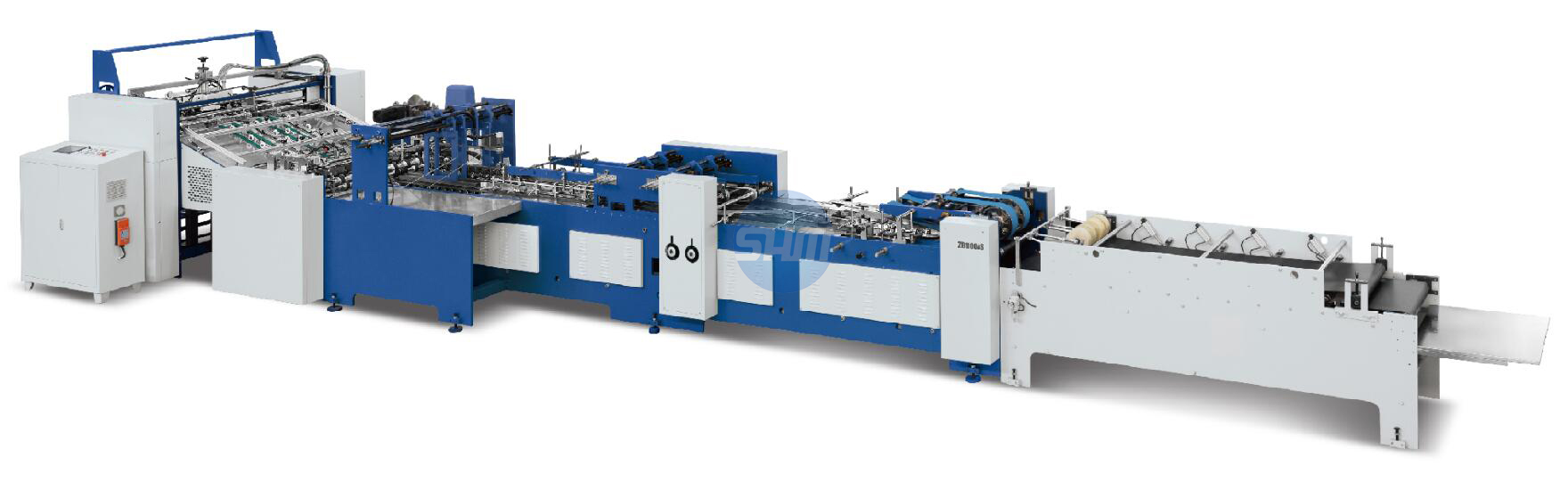

ZB1180AS SHEET-FEEDING BAG TUBE FORMING MACHINE







MAIN FEATURES:

ZB1180AS sheet feeding bag tube forming machine (independent innovation) is suitable for digital industry, various type of customized paper bag making.This machine is easy to setup and operation, which bring high efficiency during production.The paper sheet automatic delivery by feeder, automatic positioning by guide and line aligning system, automatic side pasting (both hot-melt glue and cold glue available), top folding (insert pasting), tube forming, automatic gusset forming, compaction bag output. lt is a good choice to produce digital industrial, B2C, C2C products, etc flexible individualization order.


MAIN SPECIFICATIONS:


Model

ZB1180AS

Sheet size

Max.1180x600mm

Min.540x320mm

Sheet weight

150-300gsm

Bag width

180-410mm

Bottom width

80-175mm

Bag tube length

250-570mm

Speed

50-100bags/min

Glue type

Water base glue(hot-melt glue)

Production power

9kw

Total power

15kw

Voltage

380V

Weight

5800kg

Dimension

12600x2500x1800mm



THE FLOW CHART:
