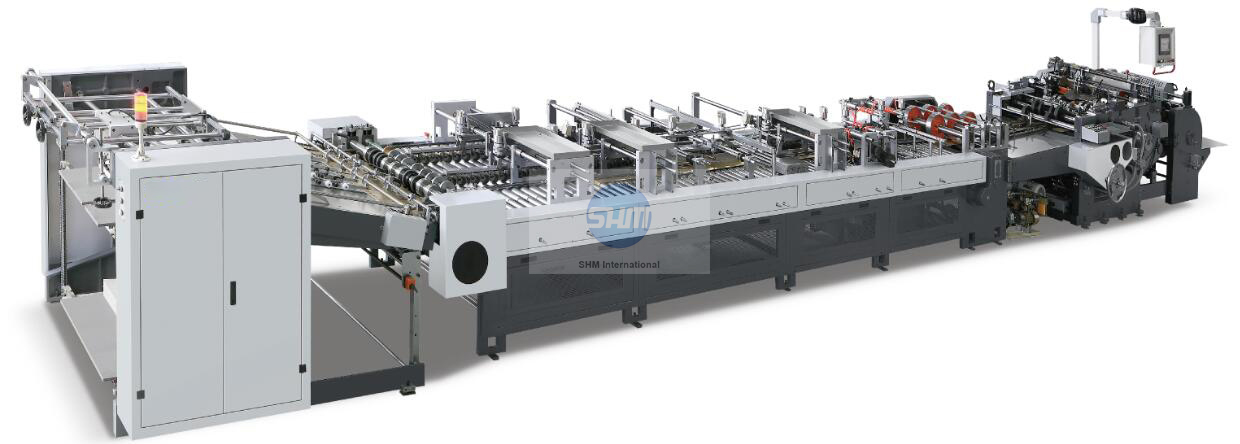

KL-350/1040,KL-450/1240 AUTOMATIC PAPER BAG MACHINE














MAIN FEATURES:

1. We set new standards to cut down the cycle time. Rapid cycle time improves capacity and lower production cost.
2. Our engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.
3. Brown paper, copperplate paper, white-plate paper, white paperboard and gray paperboard etc (including laminting paper) is available on the machine.
4. The machine is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.
5. Its technique process is about: the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press line with rolling press device and then make one-side glue, folding and positioning and sticking and conveying device will convey them into the bottom position and conduct press horizontal line, open bottom, make glue and press together and finally output finished bag products.


MAIN SPECIFICATIONS:


Model

KL-350/1040

KL-450/1240

Bag face width

180-350mm

260-450

Organ height

70-150mm

100-180mm

Canister length of the paper bag

290-600mm

380-620mm

Paper width

530-1040mm

620-1240mm

Paper length

290-600mm

380-740mm

Paper weight range with unit

80-200g (Brown paper)

100-200g (PP laminated Copper paper)

180-250g (White paperboard)

150-250g (PP laminated Gray paperboard)

Product speed

40-70pcs/min

40-75pcs/min

Glue type

Water glue(hot melt glue is optional for bag side)

Power

10kw

13kw

Weight

10000kg

13000kg

Dimension

1300x1800x1700mm

13300x2100x1700mm
