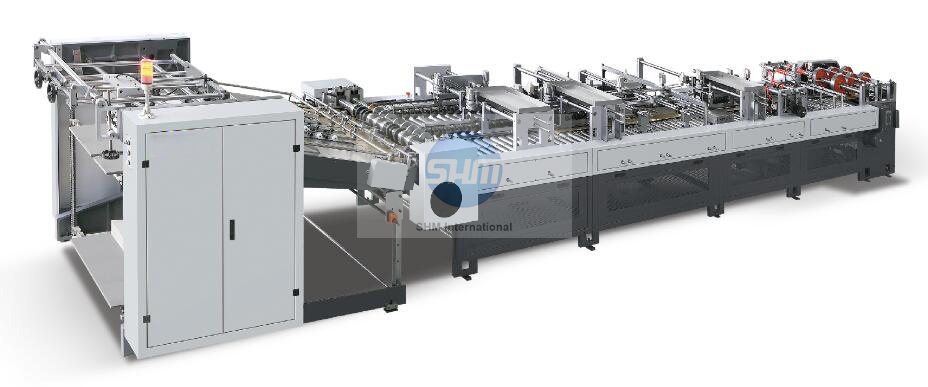

KL-700B/1040B/1240B HANDBAG FORMING MACHINE
MAIN FEATURES:
1. Brown paper, copperplate paper,white-plate paper,white paperboard and gray paperboard etc (including laminting paper) is available on the machine.
2. The machine feeds die-cut single-sheet paper to make bag tube.
3. It features a continuous function of automatic paper delivery (by feeder),line aligning(by front guide and side guide),gluing(by water-soluble glue box),automatic tube folding, impressing(by steel rollers)and bag tube output.
4. It adopts water-soluble glue which has no harm to the environment. (Equipped with hot-melt spray gun system can be optional.)
5. The touch screen operation and adjustable speed function provide high precision and rapid speed to this machine.
6. This machine can make handbags with different specifications and is an ideal equipment of manufacturing high-standard handbag.

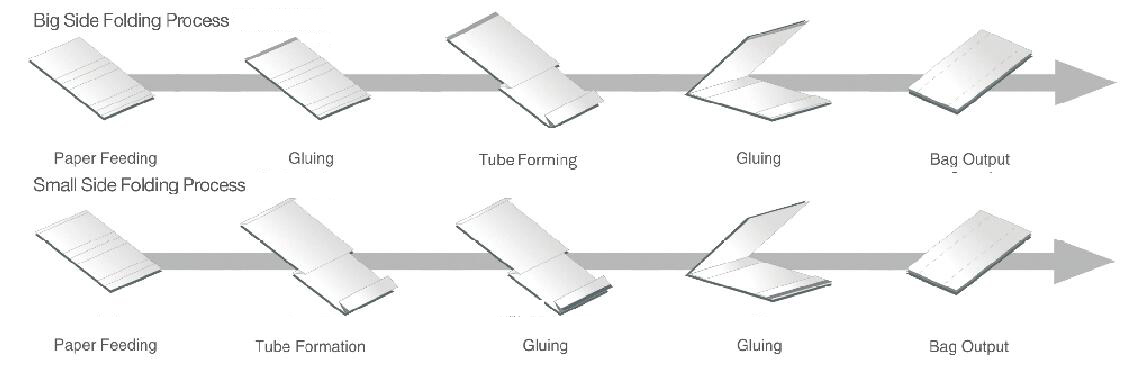

WORK PROCESS:
MAIN SPECIFICATIONS:
|
Model |
KL700B |
KL1040B |
KL1240B |
|
Paper feeding size |
Max.700x440mm Min.320x210mm |
Max.1040x600mm Min.480x290mm |
Max.1240x600mm Min.600x380mm |
|
Paper bag width |
110-220mm |
180-350mm |
260-450mm |
|
Paper tube length |
210-440mm |
290-600mm |
380-600mm |
|
Paper bag bottom/gusset |
50-130mm |
60-150mm |
80-180mm |
|
Paper weight range |
100-350g |
100-350g |
120-350g |
|
Max. speed |
100pcs/min |
||
|
Glue type |
hot melt adhesive & Water-soluble cold glue |
||
|
Power |
8kw |
10kw |
12kw |
|
Weight |
4.5T |
5.5T |
6.5T |
|
Dimension |
7500x1700x1600mm |
9000x1900x1600mm |
9500x2000x1600mm |
