KL-220A/350A/450A AUTOMATIC PAPER BAG MAKING MACHINE

WITH TOP FOLDING AND HOLE PUNCHING














MAIN FEATURES:

1.  The machine can finish automatic creasing, automatic top folding and automatic hole punching.
2.  Plat making time only needs 2-3 hours, and the perfect non-stop operation is well ahead of the similar machine, to win more time and create more value.
3.  One engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.
4.  For the power consumption, our machines only has 3.7kw, which is much lower than similar machine.
5.  High end devices for the machine, even for each bolt, which using 12.9 grades high strength bolts of more stress and more impact resistance.
6.  From bearing to electrical apparatus, our machine adopts the international well known high quality brands, such as NHK, SCHNEIDER ETC.
7.  Our machine can be applicable to kraft paper, art paper, white paperboard and grey paperboard etc, including laminating paper.


MAIN SPECIFICATIONS:


Model

KL-220A

KL-350A

KL-450A

Paper bag width

120-220m

180-350mm

220-450mm

Paper bag bottom/gusset

60-120mm

70-150mm

90-170mm

Paper sheet width

380-700mm

530-1040mm

600-1240mm

Paper sheet length

240-440mm

290-600mm

320-600mm

Paper types/paper weight

(230-300g after die cutting process)

Kraft paper 120-200g

Art paper+laminated PP 120-210g

Kraft paper 120-200g

Art paper+laminated PP 157-210g

White Cardboard 180-250mm

Grey paperboard laminated PP film 150-300g

Distance between holes

60mm、100mm

80mm、120mm

100mm、140mm

Hole diameter

Φ4mm、Φ5mm、Φ6mm

Φ4mm、Φ5mm、Φ6mm

Φ4mm、Φ5mm、Φ6mm

Working speed

50-85pieces/mm

40-75pieces/mm

40-75pieces/mm

Glue type

Water glue/hot glue system

Water glue/hot glue system

Water glue/hot glue system

Power

15kw

15kw

15kw

Weight

10000kg

11000kg

12000kg

Dimension

14700x1930x1700mm

15200x1930x1700mm

15200x2100x1700mm

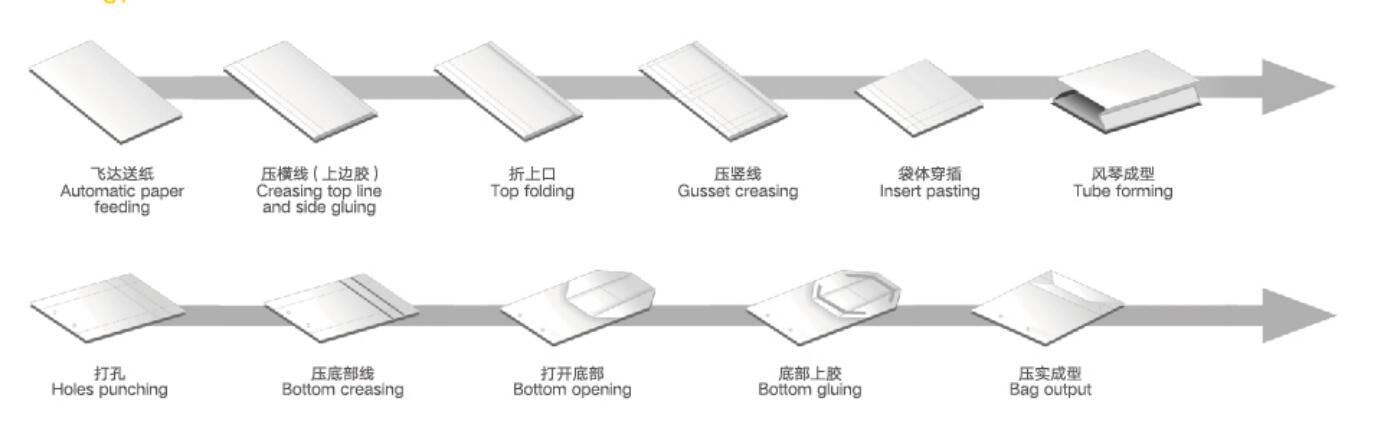

THE FLOW CHART:
