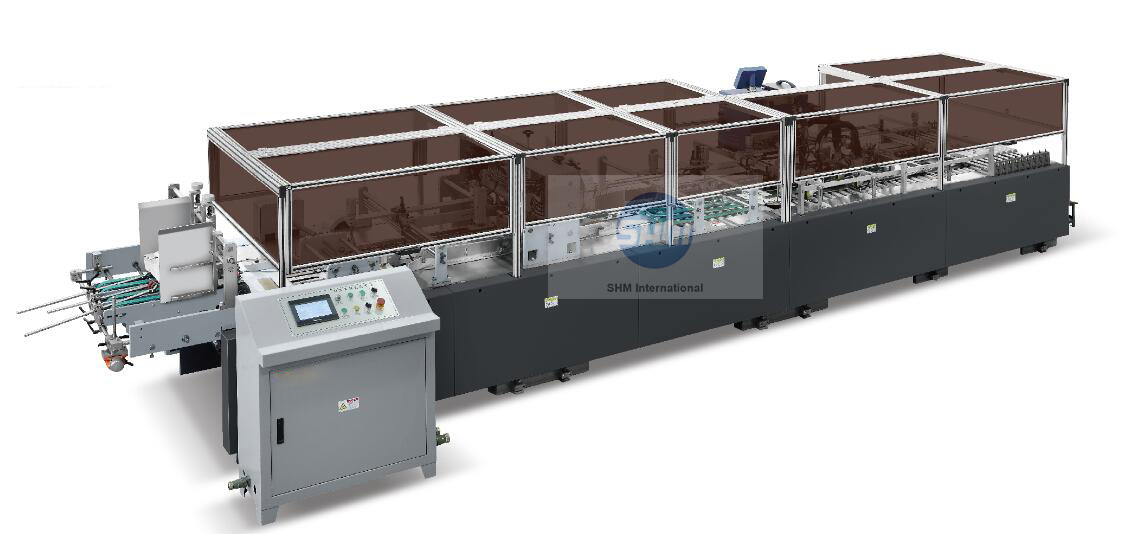

KL350/1040C AUTOMATIC PAPER BAG BOTTOM CARD INSERTING MACHINE
INTRODUCTION:
KL-350/1040C automatic paper bag bottom card inserting machine process the paper bags conveyance supply,a combination of hooks and paper separation suction nozzle to open the bottom,the compaction to achieve a definite shape,then suction the cardboard into the bag bottom,pasted by the hotmelt glue system(water glue is optional),finally compacted outputs.
It is simple to operate,high performing,and cost-effective.short time of changing different bag sizes,saving labor,producting more bags with fewer man-hours.the machine KL-350/1040C can be worked together with KL-350/1040 or KL-350/1040Aautomatic paper bag machine by connecting directly.

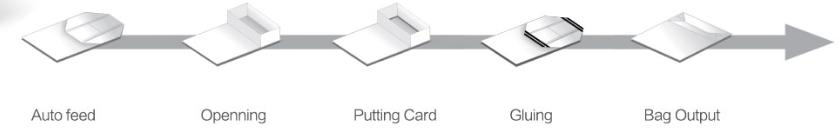

WORK PROCESS:
MAIN SPECIFICATIONS:
|
Paper bag width |
180-350mm |
|
Paper bag bottom |
70-150mm |
|
Paper tube length |
290-600mm |
|
Paper type and weight |
kraft paper:150-250g art paper+Laminated PP:170-250g white paperboard+ laminated PP:170-250g grey paperboard+ laminated PP:170-250g (all need die cutting) (size of paper card)£º Max.size144*334mm Min.size 64*174mm paper card weight£º200-300g |
|
Product speed |
35-50pieces/min |
|
Glue type |
hot melt glue |
|
Power |
3.5kw |
|
Weight |
3800kg |
|
Dimension |
8000x1200x1500mm |
