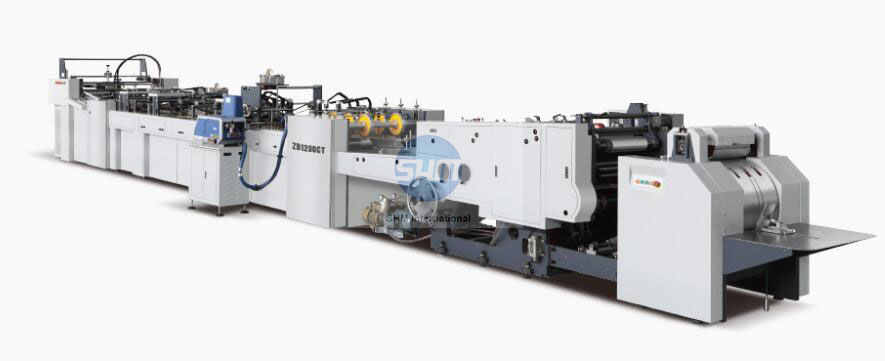

ZB1200CT-430 SHEET-FEEDING PAPER BAG MAKING MACHINE
INTRODUCTION:
ZB1200CT-430 automatic sheet-feeding paper bag making machine(Adopt Italy technology) is suitable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical,electricity,light,gas integration technology, setting a number of its proprietary technology, use sheet paper as raw material ,can one-time finish: paper feeding, positioning,die-cutting,reinforced paper gluing, reinforced paper pasting, top folding, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output.The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process. using the PLC programmable control, frequency control technology to realize the integral multi- dimensional control, more centralized control and single point remote control operating system . with characteristics of good quality and high efficiency,its technology ranks leading level in domestic similar products.
MAIN SPECIFICATIONS:
|
Sheet
|
Max.1200x600mm
Min.540x300mm
|
|
Reinforced paper length
|
160-410mm
|
|
Reinforced paper width
|
25-40mm
|
|
Sheet weight
|
128g-250g/m²
|
|
Reinforced paper sheet weight
|
180g-230g/m²
|
|
Bottom width
|
80-180mm
|
|
Bag width
|
180-430mm
|
|
Working speed
|
40-70pcs/min
|
|
Glue type
|
water glue/hot melt glue
|
|
Power
|
15kw
|
|
Weight
|
12000kg
|
|
Dimension
|
14800x2400x1800mm
|
