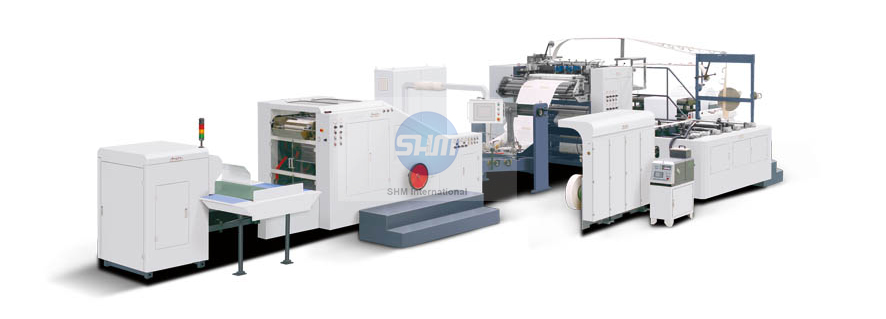

ZD-QFJ08 FULLY AUTO ROLL-FED SQUARE BOTTOM PAPER BAG MACHINE







INTRODUCTION:

This machine is designed to manufacture square bottom paper bags with handles from paper roll, paper patch roll and paper rope, and it is an ideal equipment for producing paper handbags fast. By implementing steps including handle making, handle application, tube forming, tube cutting and bottom forming within a fully automatic process, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. SIEMENS PLC system and adjustable dual-moulds structure, ensure that the machine can perform quickly and stably, as well as reduce adjusting time for different bag sizes. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. Thanks to perfect technologies and fast production speed, this machine can produce paper handbags with high quality in many different forms, which are especially suitable for food and clothing industries.


MAIN FEATURES:

1. Adjustable dual-moulds structure (own proprietary technology) is applied on the machine, so that users can adjust bag size directly on the machine, which greatly reduces bag size adjusting time and increase production capacity.
2. SIEMENS PLC system ensures that the adjustment of cutting length can be implemented directly on touch screen, meanwhile brings efficient and stable production.


MAIN SPECIFICATIONS:


Paper roll width

410-770mm

(310-750mm)

Max paper roll diameter

1200mm

Material core diameter

76mm

Paper thickness

50-140gsm

Bag body width

140-220mm

(90-220mm)

Paper tube length

230-370mm

(220-470mm)

Bag bottom size

50-140mm

Handle rope height

80-85mm

Handle rope diameter

4-6mm

Handle patch length

114.3mm

Handle patch width

45-50mm

Paper patch roll diameter

1200mm

Paper patch roll width

90-100mm

Paper patch thickness

100-180gsm

Max speed

150bags/min

(220bags/min)

Power

28kw

Weight

15000kg

Dimension

11000x4400x1800mm
