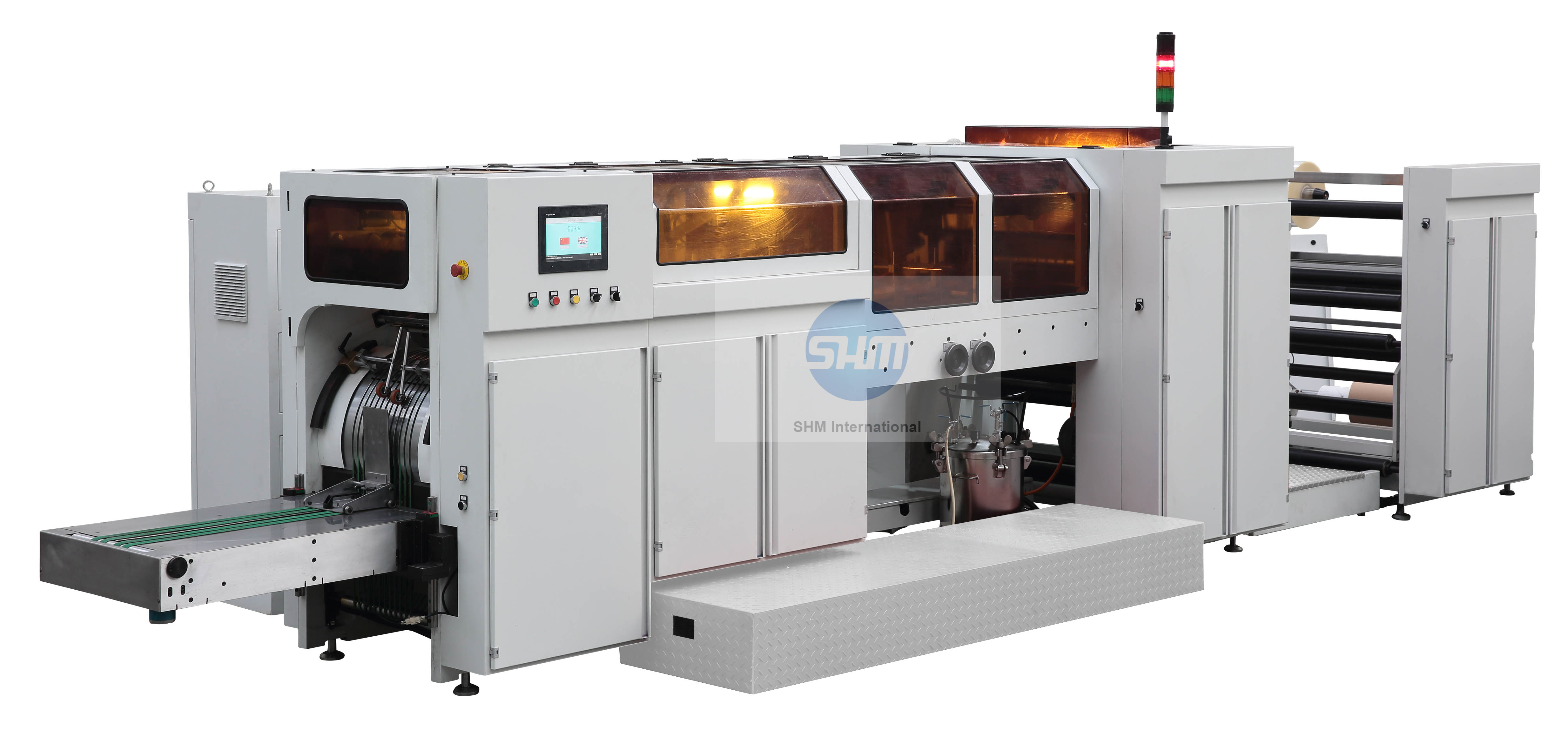

ZD-J10 ROLL-FED FLAT BOTTOM PAPER BAG MACHINE
INTRODUCTION:
The machine is designed to manufacture flat bottom paper bags from roll paper. Different from traditional flat bottom paper bag machine, this machine implements material unwinding, material perforating, side gluing, tube forming, tube cutting, bottom forming and bags collection in one time. With advantages of easy operation, high efficiency and more stabilization, it is an ideal machine for make different kind of food paper bags.
MAIN FEATURES:
1. Machine use French Schneider touch screen human-computer interface, operation and control easily.
2. Adopt Japanese Yaskawa Servo Control System and German SICK photocell for rectify, tracking printed bag accurately.
3. Adopt UK TRIO PC micro-computer control system, integrated with optical fiber, ensure high speed running steadily.
MAIN SPECIFICATIONS:
|
Paper width |
100-740mm |
|
Max paper roll diameter |
1000mm |
|
Paper reel core diameter |
76mm |
|
Paper thickness |
35-80gsm |
|
Bag body length |
100-400mm |
|
Bag body width |
70-250mm |
|
Side folding range |
0-60mm |
|
Film width |
50-200mm |
|
Film thickness |
20-50um |
|
Film core diameter |
76mm |
|
Max production speed |
300bags/min |
|
Power |
15kw |
|
Weight |
4500kg |
|
Dimension |
7600x1800x1700mm |
