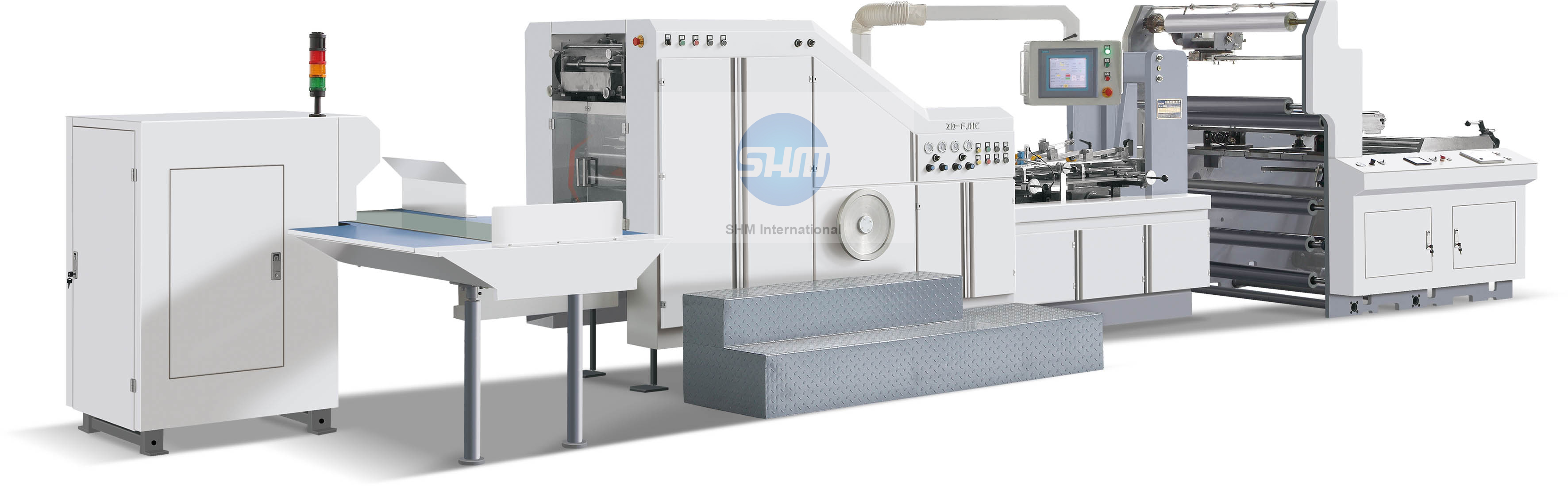

ZD-FJ08C ROLL-FED SQUARE BOTTOM PAPER BAG MACHINE







INTRODUCTION:

This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing small-size paper bags fast. By implementing steps including paper feeding, tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped SIEMENS PLC system ensures that the machine can perform quickly and stably. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.


MAIN FEATURES:

1. This machine can produce paper bags in very fast speed (260 bags/min at MAX.)
2.This machine can process thin paper for paper bags (45 g/m2 for thinnest).


MAIN SPECIFICATIONS:


Paper roll width

290-630mm

Max paper roll diameter

1200mm

Paper reel core diameter

76mm

Paper thickness

45-130gsm

Tube length

190-370mm

Bag body width

80-200mm

Bag bottom size

50-100mm

Max production speed

260bags/min

Power

13.5kw

Weight

6000kg

Dimension

8500x3000x1600mm
