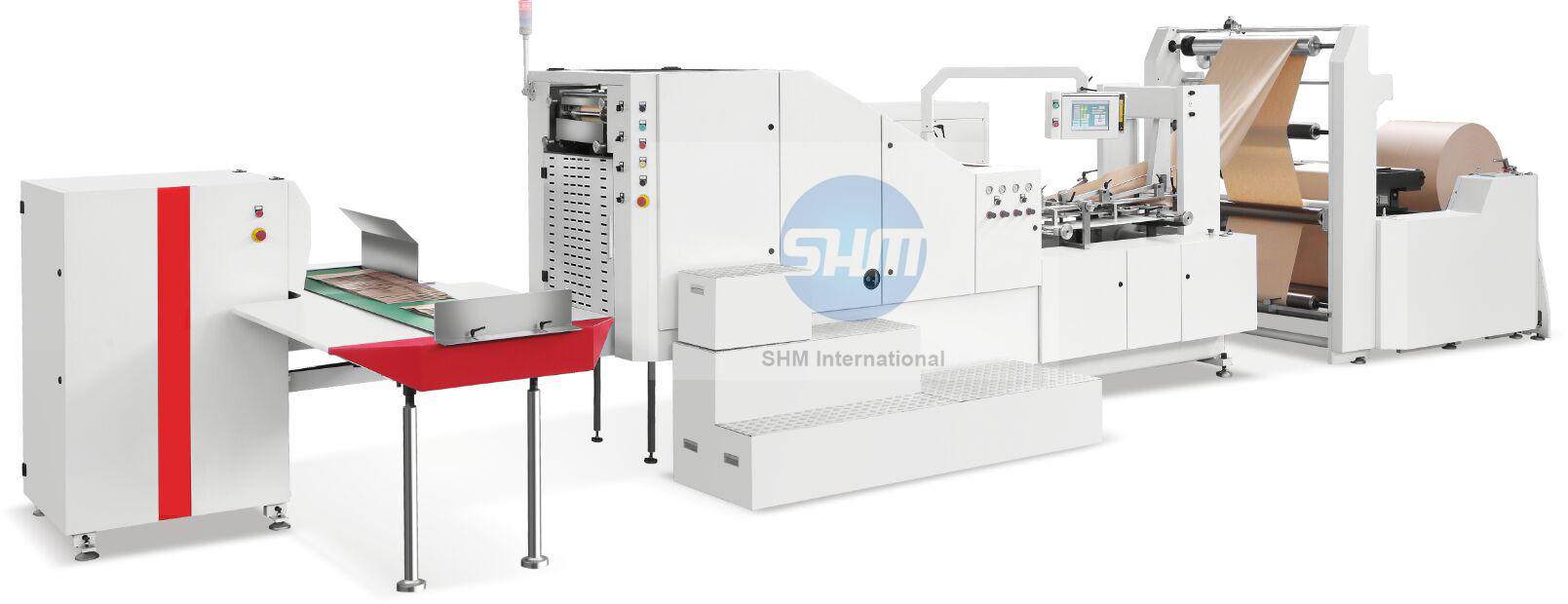

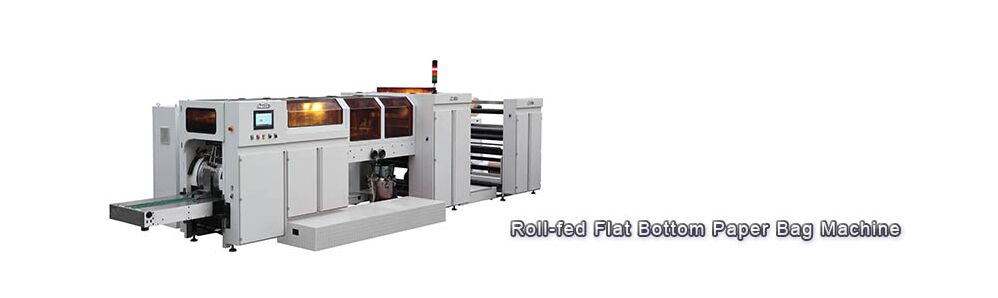

RZFD-330/450 ROLL FED SQUARE BOTTOM PAPER BAG MACHINE













INTRODUCTION:

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time.The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and other environmental paper bags.


MAIN FEATURES:

1.Use France Schneider Touch Screen Human Computer Interface, operate and control easily.
2.Adopt Germany Original REXROTH PC Control, integrated with optical fiber, ensure high speed running steadily.
3.Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.
4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time.


MAIN SPECIFICATIONS:


Model

RZFD-330

RZFD-450

Bag length

270-530mm

270-530mm

Bag width

120-330mm

220-450mm

Bag bottom width

60-180mm

90-180mm

Paper thickness

60-150g/m²

80-150g/m²

Speed

30-220pcs/min

30-200pcs/min

Paper bag speed

30-180pcs/min

30-150pcs/min

Paper roll width

380-1050mm

660-1290mm

Roll paper diameter

1300mm

1300mm

Power supply

3phase 380V 15kw

3phase 380V 15kw

Weight

8500kg

9000kg

Dimension

10000x3700x2200mm

10000x3800x2200mm

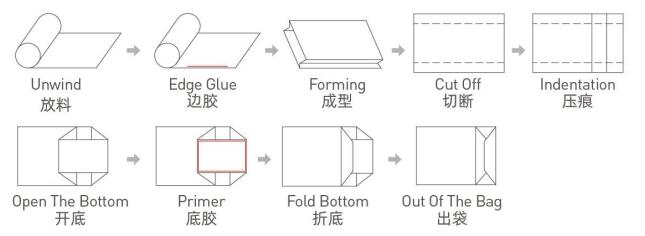

THE FLOW CHART:
