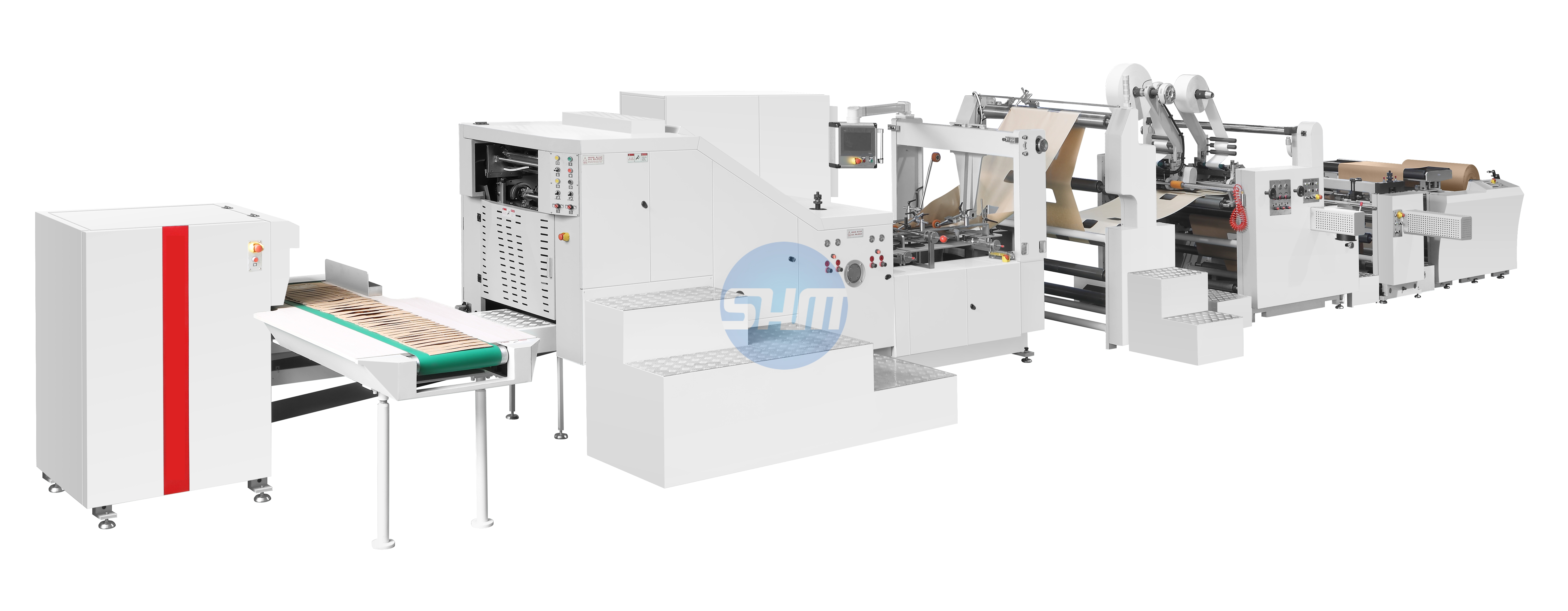

RZFD-330/450(W+D) HIGH SPEED SQUARE BOTTOM PAPER BAG MACHINE

(OPEN WINDOW+PATCH BAG)







INTRODUCTION:

This machine is used for rolls of primary color paper or printing rolls such as kraft paper, food paper and other paper rolls.This machine completes the paper bag process at one time.
The window opening part is completed by unwinding,window opening. filming, edge glue, forming, cutting and indentation, bottom opening and bottom gluing, folding bottom forming, and finished bag finishing.
The Paige bag part is completed by unwinding, patching, edge glue, forming,punching and cutting, bottom indentation and folding, bottom glue forming, and finished bag finishing in one time.This machine is more convenient to operate, more efficient, and more stable. It is an environmentally friendly paper bag machine equipment for producing various paper bags, snack food bags, bread bags, dried fruit bags, etc.


MAIN FEATURES:

1.Use France Schneider Touch Screen Human-Computer Interface, operate and control easily.
2.Adopt Germany Original REXROTH PC Control, integrated with optical fiber,ensure high speed running steadily.
3.Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction,tracking printing bag accurately.
4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time.


MAIN SPECIFICATIONS:


Model

RZFD-330(W+D)

RZFD-450(W+D)

Cutting length

270-530mm

270-530mm

Paper bag width

120-330mm

220-450mm

The hole width

50-120mm

50-120mm

The hole height

50-120mm

50-120mm

Paper bag bottom width

60-180mm

90-180mm

Patch bag width

190-330mm

190-330mm

Patch handle length

75/85mm

75/85mm

Paige bag paper thickness

80-150g/m²

80-150g/m²

Paige bag film thickness

30-60mm

30-60mm

Paige bag roll width

130mm

130mm

Patch bag speed

30-120pcs/min

30-120pcs/min

Machine speed

30-200pcs/min

30-200pcs/min

Paper bag speed

30-150pcs/min

30-130pcs/min

Paper roll width

380-1050mm

590-1290mm

Strip window size

60-150mm

60-150mm

Roll paper diameter

1200mm

1200mm

Power

380V 3phase 4line 50.4kw

380V 3phase 4line 50.4kw

Weight

10000kg

10500kg

Dimension

15500x4200x2000mm

15500x4200x2000mm

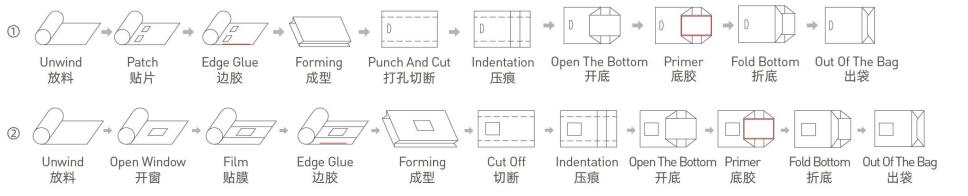

THE FLOW CHART:

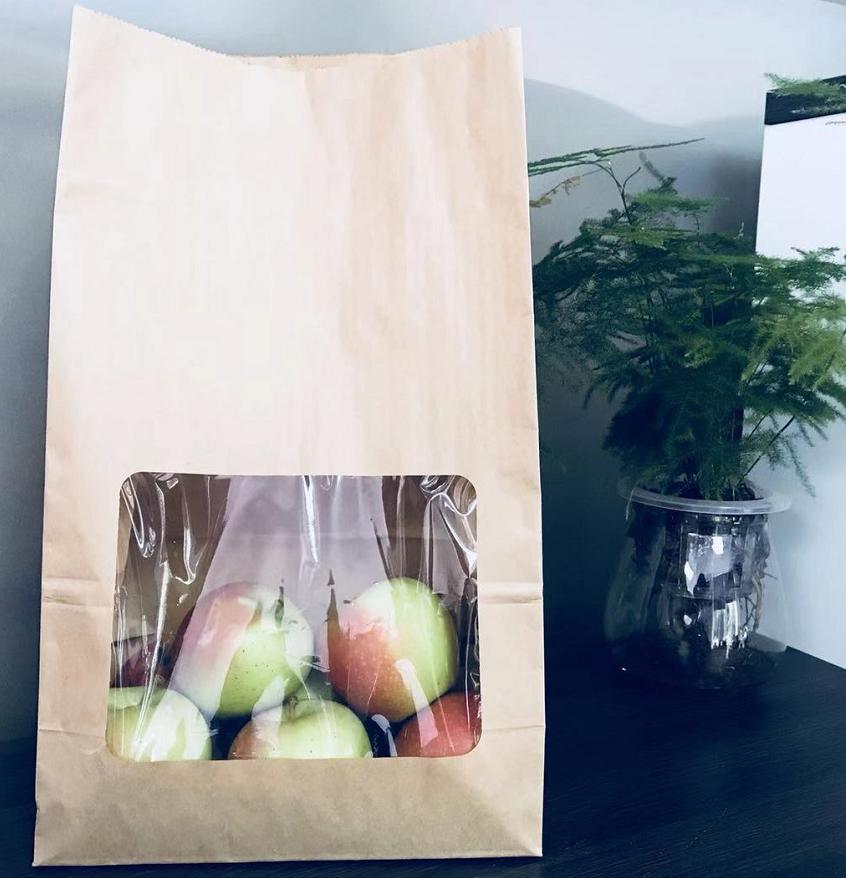

RZFD-330W开窗方底纸袋机 样品.jpg

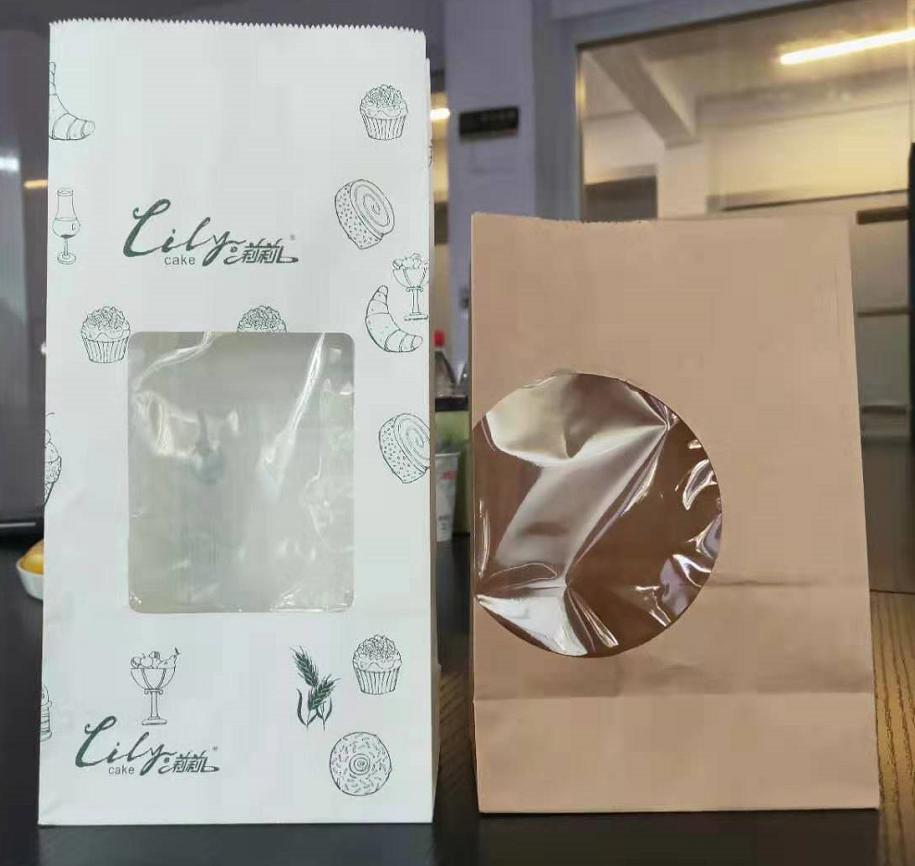

RZFD-330W开窗方底纸袋机 样品1.jpg

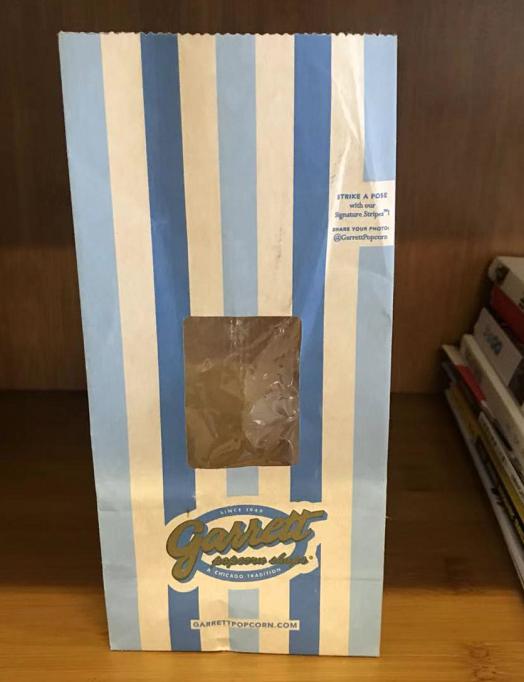

RZFD-330W开窗方底纸袋机 样品2.jpg
