首页 > PRODUCTS > PAPER PRODUCT SYSTEM > FOOD BAG MACHINERZFD-330(2PLY) Fully Automatic High Speed Square Bottom Double Discharge Paper Bag Machine
RZFD-330(2PLY) FULLY AUTOMATIC HIGH SPEED SQUARE BOTTOM DOUBLE
DISCHARGE PAPER BAG MACHINE
INTRODUCTION:
This machine is used for rolls of primary color paper or printing rolls such as kraft paper, food paper and other paper rolls. This machine completes the paper bag

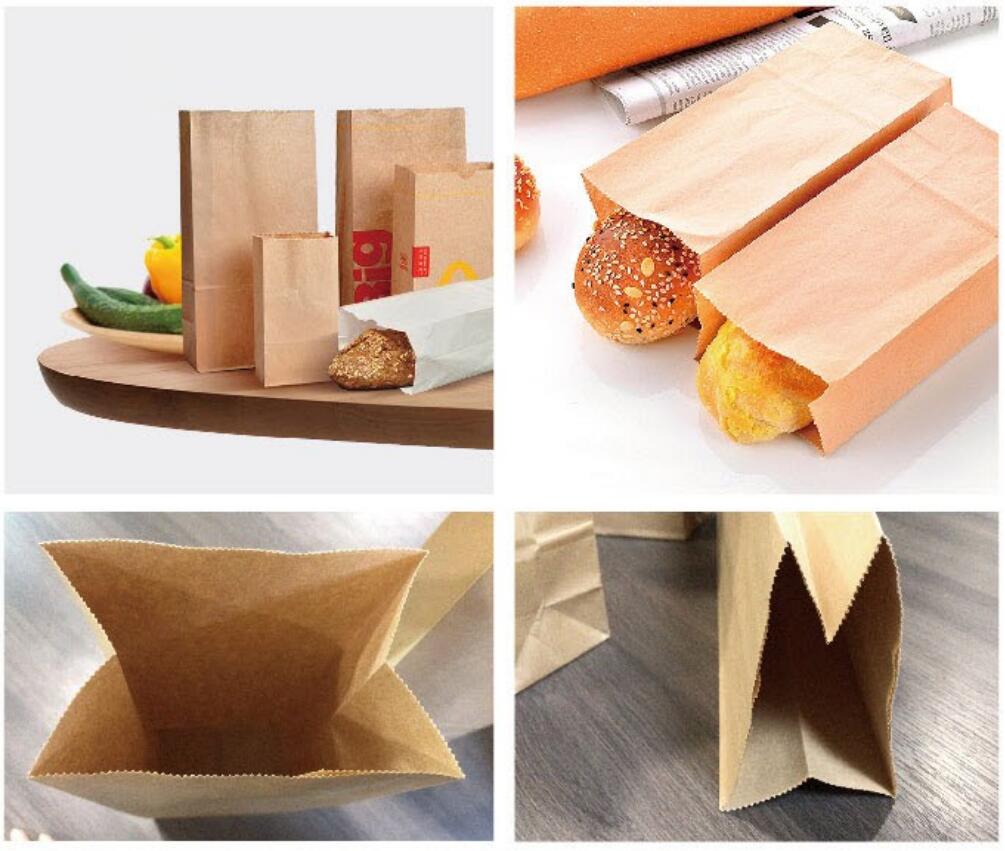

process at one time. It consists of 2 sets of automatic paper roll tension, roll correction, gluing, center gluing, raw material into tube, fixed length cutting, bottom indentation,bottom folding, bottom gluing, bag bottom forming, and finished bag finishing at onetime.This machine is more convenient to operate, more efficient, and more stable. It is an environmentally friendly automatic double-feed paper bag machine equipment for producing various paper bags, snack food bags, bread bags, dried fruit bags, etc.
MAIN FEATURES:
1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber.Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction,tracking printing bag accurately.
4.Patch bag function adopts a complete set of German original LENZE servo motor.Through integration with optical fiber, it works with the German original Rexroth motion controller (PC).
5.Automatic hole-punching adopts Germany original LENZE servo motor.
6.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.7.Raw material unwinding EPC adopts ltaly SELECTRA, reducing material alignment time.
MAIN SPECIFICATIONS:
|
Model
|
RZFD-330(2PLY)
|
|
Paper bag length
|
270-530mm
|
|
Paper bag width
|
120-330mm
|
|
Paper bag bottom width
|
60-180mm
|
|
Paper thickness
|
80-150g/m²
|
|
Machine speed
|
30-220pcs/min
|
|
Paper bag speed
|
30-180pcs/min
|
|
Paper roll width
|
380-1050mm
|
|
Roll paper diameter
|
1300mm
|
|
Lnner diameter of paper
|
76mm
|
|
Power
|
380V 3phase 4line 16.5kw
|
|
Weight
|
9700kg
|
|
Dimension
|
13000x2700x2400mm
|

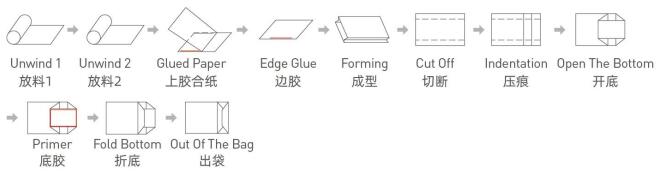

THE FLOW CHART:
