RB380 AUTOMATIC RIGID BOX MAKER
MAIN SPECIFICATIONS:
|
Model |
RB380 |
|
Box size |
Max.260x380mm Min.50x60mm |
|
Paper size |
Max.480x630mm Min.70x120mm |
|
Box height |
10-120mm |
|
Turn in depth |
10-100mm |
|
Cardboard thickness |
0.8-3mm |
|
Paper thickness |
80-300gsm |
|
Paper stacking height |
650mm |
|
Precision |
±0.1mm |
|
Speed |
＜50pcs/min |
|
Electric heating power |
6kw |
|
Air supply |
50L/min 0.6mpa |
|
Motor power |
380V 3phase 28kw |
|
Weight |
5500kg |
|
Dimension |
6300x6000x3300mm |
MAIN FEATURES:

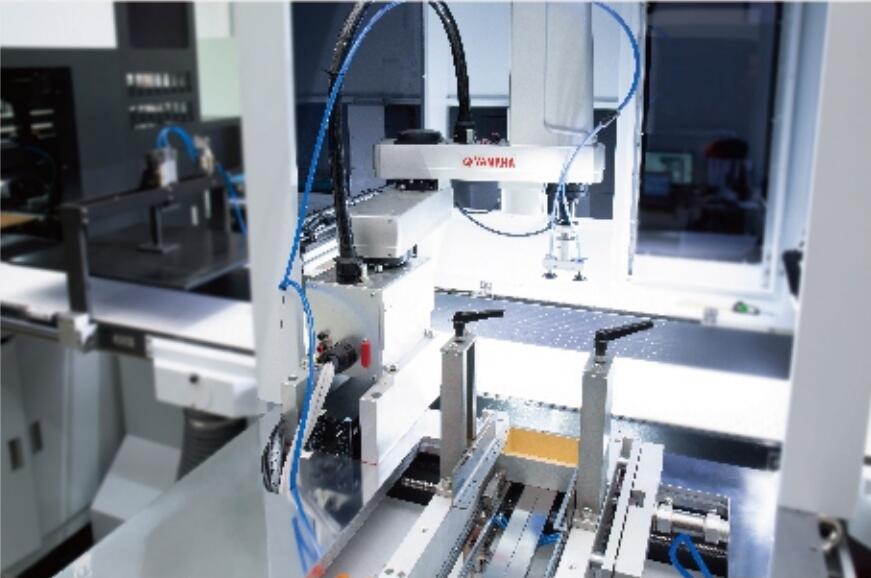

1.Camera Positioning System
China's first three camera positioning system and independent box positioning system. combined with the robot to take the box, is currently advanced and high-precision positioning technalogy.
2.Quick Digital Adjustment
The newly designed servo and pneumatic control structure completes the box forming and wrapping and realizes rapid digital adjustment.

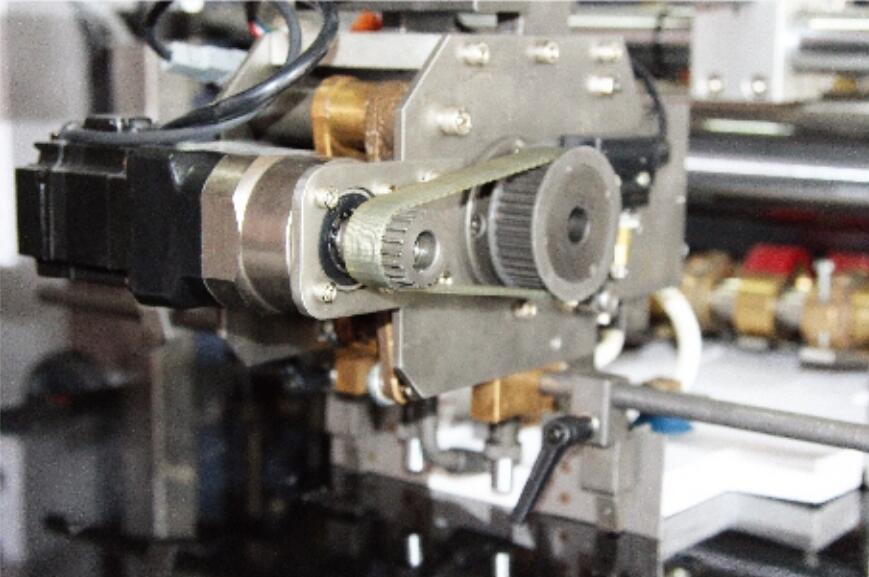

3.Servo-controlled Paper Feeder
The newly designed servo-controlled paper feeder adopts the rear suction type to feed paper. effectively preventing double sheets of paper,and stable operation.
4.Automatic Centralized Lubrication System
The regullar and quantitative centralized oil supply system can fully guarantee the lubrication of the main parts and effectively ensure the stable operation of the machine.
5.Original Cardboard Pre-stacking Device
The cardboard stacking and conveying device can realize non-stop conveying and ensure the high-speed operation of the machine.
6.Double Station Wrapping
Double-station wrapping speed is faster, greatly improving work efficiency.
