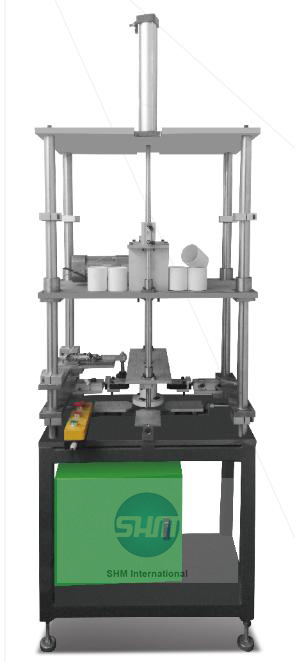

RW350/RW350s Semi Automatic Round Box Wrapping Machine



INTRODUCTIONS:
The semi-automatic round box wrapping machine is aimed at the round boxws withe the internal edge-fold and bottom edge-fold.



MAIN FEATURES:
1.Fever glue stains
It reduces hand contact time and oppotunity,so there will be a few glue stains on the formed round boxes.
2.Fast speed
A single person can operate the double-station working.The speed can reach 12pcs/min,which is 5~8 times of the manual work.
3.Energy saving,small space,simple operation
4.The semi-automatic round box wrapping machine can choose single station or double stations.



MAIN SPECIFICATIONS:

Model

RW350(single station)

RW350S(double stations)

Max diameter of round box

350mm

350mm

Min diameter of round box

70mm

70mm

Max height of round box

300mm

300mm

Min height of round box

30mm

30mm

Speed

6pcs/min

12pcs/min

Air

0.5~0.7Mpa

0.5~0.7Mpa

Power

220V 50Hz/300W

220V 50Hz/300W

Weight

300kg

600kg

Dimension(LxWxH)

800x500x2200mm

1800x500x2200mm
