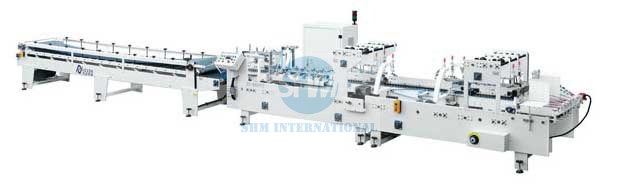

ZH-880PFT FOLDER GLUER







MAIN FEATURES:

1. The machine adopts strengthened single-side driving system, for steady running and easy maintenance.
2. The motor adopts infinitely variable speed drive with power saving.
3. The machine equips double face tooth rod for operation. Up and down linkage makes adjustment in place, precise and rapid.
4. Delivery part adopts with several thick belts with cooperation of shaking motor to ensure paper feeding in continuous, exact and automatic.
5. The machine has a grinder in each side, which makes the glue more stable, firmly.
6. This model is designed to do straight line box. The 4-fold design makes box more perfect.
7. In the pre-folding part, the 1st fold and 3rd fold can be done at 180° or 90°. The 2nd and 4th fold is for molding the box at 180°. The optional to add 180°-135° fold in pre-folding part.
8. The machine is controlled by infrared photoelectric. It has automatic counting function.
9. The special boxes of size 35mm molded by 2-fold or 4-fold are also available.


MAIN SPECIFICATIONS:


Line speed

180m/min , Continuous adjustment

Suitable paper

200-400 g/ms, paperboard

Box forming

Straight line box

Fold method

1st & 3rd folds 90°, 2nd & 4th folds 180°

Paper feeding

Automatic feeding, grinding unit

Power

3.2kw

Dimension

7300x1060x1300mm

Weight

2400kg
