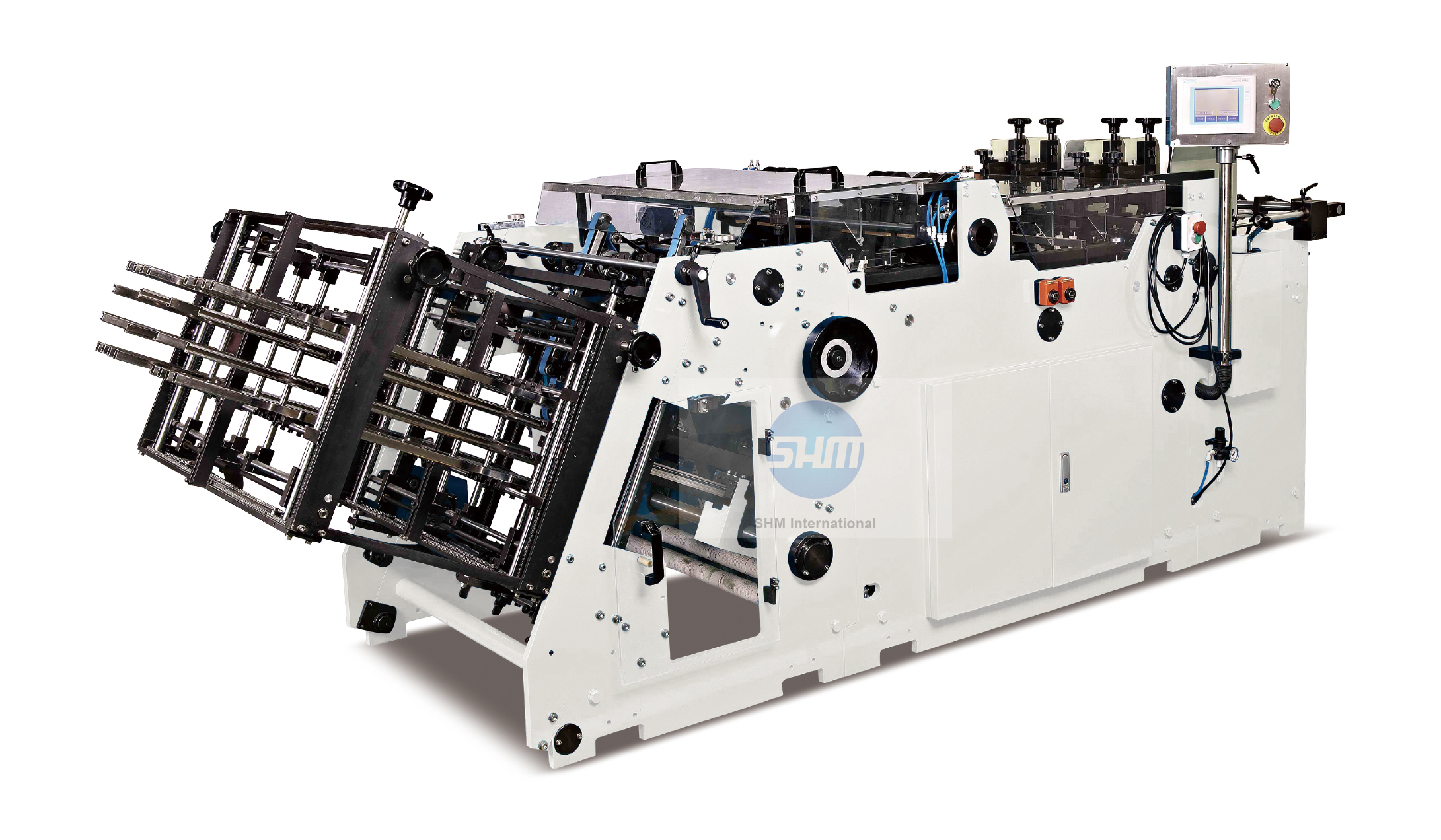

L800-A/L800-C/L1000/2-A/L1000/2-B CARTON ERECTING MACHINE







FEATURES:

The differences between L800-A and L800-C:
1. L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A is easier to change different box than L800-C.
2. L800-A is better to make eight corners boxes than L800-C.

The differences between L1000/2-A and L1000/2-B:
1. L1000/2-A only can make the same box on the two lanes at the same time.
2. L1000/2-B can make the different box on the two lanes at the same time.


MAIN SPECIFICATIONS:


Model

L800-A

L800-C

L1000/2-A

L1000/2-B

Voltage

380V 50Hz

380V 50Hz

380V 50Hz

380V 50Hz

Covering area

4000x1200mm

4000x1200mm

4000x1400mm

4000x1400mm

Total power

8kw

5kw

8kw

8kw

Max production speed

200pcs/min

200pcs/min

400pcs/min

400pcs/min

Air pressure

0.6Mpa (Dry and clean compressed air)

Packing

2980x1560x1320mm,

N.W.1500kg, G.W.1600kg;

1310x1170x900mm,

N.W.250kg, G.W.290kg

2960x1520x1520mm,

N.W.1800kg, G.W.2200kg;

1360x1360x870mm,

N.W.350kg, G.W.450kg

2660x1700x1560mm,

N.W.1800kg, G.W.2200kg;

1360x1100x1150mm,

N.W.350kg, G.W.450kg

Materials

Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5mm.

Blank length (L)

100-450mm

100-450mm

100-450mm

100-450mm

Blank length (B)

100-680mm

100-680mm

100-450mm

100-450mm

Side flaps height (H)

15-260mm

15-260mm

15-260mm

15-260mm

Side flaps height+lid (H1)

15-260mm

15-260mm

50-260mm

50-260mm

Conicity

5-40°

5-40°

5-40°

5-40°
