ICE CREAM PAPER CONE MACHINE





INTRODUCTION:

The ice cream paper cone machine is designed according to European industrial standard. Initially developed in China, the products have achieved the CE certification and have been sold to over 70countries in the world. With high qualityand efficiency, it is an ideal choice for you to produce ice cream paper cone.



MAIN SPECIFICATIONS:


 Model

 DYK6-H

 DYK6-B

 Control

 Electrical cam

 Encoder

 Electronic cam is more accurate for feeding,forming and gluing than encoder.

 Transport

 Belt

 Chain

 Belt is cleaner than chain and will be not pulled long,but chain will be easily pulled long.

 Materials

 Common paper, maluminum foil paper,

Coated paper:80-150gsm, dry wax paper≤100gsm

 Speed

 Max.250pcs/min

 Air pressure

 0.6mpa(dry and clean compressor air)

 Voltage

 380V 50Hz

 Power

 9kw

 Net weight

 900kg

 400kg

 Cross weight

 950kg

 450kg

 Dimension

 1360x1160x1860mm

 1560x850x850mm

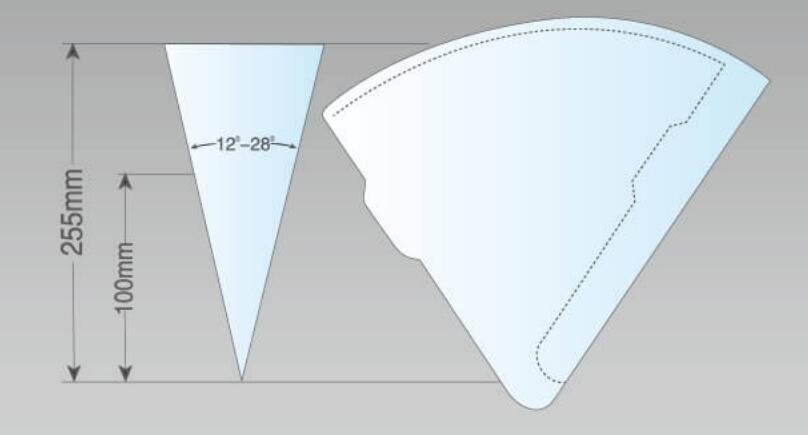

SAMPLE:

ice cream paper cone 产品图.jpg


ice cream paper cone 产品图1.jpg
