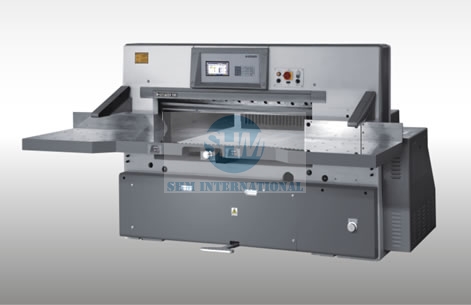

K SERIES PROGRAM CONTROL PAPER CUTTING MACHINE







INTRODUCTION:

This model adopts Japan AC digit servo control system,7 inches colorful display screen of resolution rate is 0.01mm, has self-diagnostic function of troubles and displays the operating pattern, It has 100 program units, more than 5000 different cutting position the max paper pushing speed is 5*16m/min. It adopts stronger computer operating. It can memorize store the storage time can be up to 200000 hours above. It has self maintenance to the operating system. Adopt Japan hydraulic components, Japan and Korea electric components. Taiwan ball lead screw and linear guide-rail are used. PLC controller can monitor all the electrical and mechanical section. Its key parts adopt imported bearing of low maintenance.


MAIN FEATURES:

1. Ball lead screw and linear guide-rail makes paper impeller run smooth, low noise, accurate positioning, enhance the cutting precision and speed   greatly, prolong the service lift of paper cutter.
2. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000 x 800) is optional.
3. IR photoelectric protection, buttons by two hands safety devices.
4. Safety device for knife bed, overloading protection for cutting, automatic return safety device.
5. Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. The paper is pressed twice by pressure-increased system.
6. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
7. Equipped with the optical knife alignment to make cutting more convenient.
8. PLC control system.
9. Ejecting device for knife bar.
10. Flat worm speed reducer transmission.
11. Multination language operation interface.
12. Carry on the block programming operation through the figures and diagrams operation manual.


MAIN SPECIFICATIONS:


Model

78K

92K

115K

Cutting width

780mm

920mm

1150mm

Cutting depth

Max.780mm

Max.930mm

Max.1150mm

Working table length

1780mm

1980mm

2260mm

Cutting speed

45times/min

45times/min

45times/min

Pressure

Max.30000N

Max.35000N

Max.40000N

Weight

2250kg

2400kg

4000kg

Dimension

2100x1400x1950mm

2250x1400x1950mm

2550x1600x2150mm





Model

130K

137K

155K

Cutting width

1300mm

1370mm

1550mm

Cutting depth

Max.1300mm

Max.1450mm

Max.1550mm

Working table length

2410mm

2590mm

2800mm

Cutting speed

45times/min

45times/min

42times/min

Pressure

Max.40000N

Max.45000N

Max.55000N

Weight

3860kg

4150kg

5200kg

Cutting width

2600x1530x1950mm

2800x1600x2150mm

2960x1650x2150mm





Model

166K

186K

Cutting width

1660mm

1860mm

Cutting depth

Max.1660mm

Max.2000mm

Working table length

2830mm

3270mm

Cutting speed

42times/min

40times/min

Pressure

Max.60000N

Max.65000N

Weight

5300kg

6800kg

Cutting width

 3150x1600x2150mm

 3400x1820x2300mm





Model

220K

260K

Cutting width

2200mm

2600mm

Cutting depth

Max.2200mm

Max.2600mm

Working table length

3550mm

4000mm

Cutting speed

33times/min

30times/min

Pressure

Max.70000N

Max.70000N

Weight

10200kg

13000kg

Cutting width

 3900x1900x2700mm

 4000x2200x2200mm
