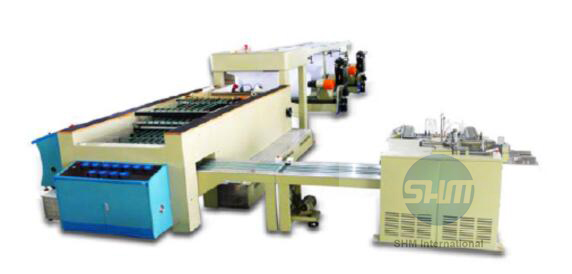

A4 LINE.jpg







CHM-A4-4/5 COPY PAPER AUTOMATIC PRODUCING LINE







INTRODUCTION:

This production line adopt the most advanced twin Rotary knife synchronize sheeting, ream wrapping and box wrapping fully automatic.


MAIN SPECIFICATIONS:


Paper width

850mm

Cutting numbers

4 cutting-A4/2 cutting-A3 210mm (width)

Paper roll diameter

Max.Ф1500mm

Min.Ф600mm

Paper core diameter

3”(76.2mm)or 6”(152.4mm) or according to the clients’ demand

Packing paper grade

High-grade copy paper; High-grade office paper; High grade Free Wood paper etc.

Paper weight

60-100g/m²

Sheet length

297mm

(specially design for A4 paper, the cutting length is 297mm)

Ream amount

500 sheets Max height: 45-55mm

Production speed

Max.280m/min

(depends on different paper quality)

Cutting speed

Max.942/min

Ream output

Max.30reams/min

Cutting load

400g/m² (4×100g/m²)

Cutting accuracy

±0.2mm

Cutting condition

No variation of the speed, no break, cut all the paper at one time and need the eligible paper.

Main power supply

3phase 380V 50Hz

Voltage

220V AC /24V DC

Power

32kw

Air consumption

300NL/min

Air pressure

6bar

Edge cutting

2x10mm

Safety standard

Design according the safety standard of China
