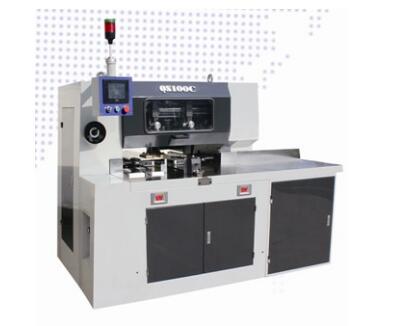

QS100C THREE KNIFE TRIMMER







MAIN FEATURES:

1. Automatic Self-Lubricate System with less maintain; Program controlled, easy to operate;
2. Two Cutting Button System and Cutting Delay System make test cut safe and efficiently;
3. High stability of output;
4. High cutting precise and Book Counter;
5. 2 sets of Knife Frame make job conversion easier.


MAIN SPECIFICATIONS:

Cutting size

Max.420x300mm

Min.80x80mm

Cutting height

Max.100mm

Cutting book height

Min.8mm

Single cutting height

Min.5mm

Cutting speed

28times/m

Power

4kw

Weight

About 2300kg

Dimension

2300x2250x1750mm
