首页 > PRODUCTS > POSTPRESS SYSTEM > UV COATING MACHINEKP-1000/1200S Manual UV Coating Machine (TC)

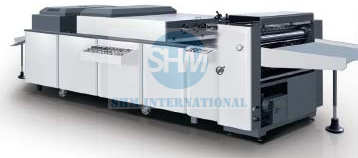

 KPS MANUAL UV COATING MACHINE.jpg







KP-1000/1200S MANUAL UV COATING MACHINE







INTRODUCTION:

This machine is an energy-saving, high speed and efficiency coating machine. The whole machine is controlled by PLC, can precisely control the quantity of the oil. The IR system adopts high efficiency and energy-saving hot air supply, advanced UV drying box, suitable for IR , UV and other kinds of oil.


MAIN SPECIFICTIONS:


Model

KP-1000S

KP-1200S

Coating width

Max.950mm

Max.1150mm

Paper thickness

250-600gsm

250-600gsm

Work speed

25-60m/min

25-60m/min

Weight

3000kg

3500kg

Power

62.5kw

62.5kw

Dimension

9100x1800x1610mm

9100x2000x1610mm
