HOME > PRODUCTS > POSTPRESS SYSTEM > UV COATING MACHINEKP-1000/1200J Automatic UV Coating Machine (TC)

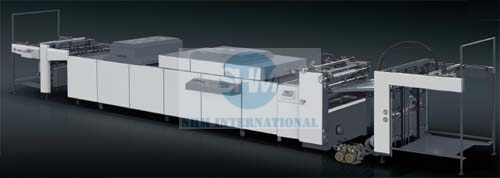

 KPJ FULL AUTOMATIC UV COATING MACHINE.jpg



KP-1000/1200J AUTOMATIC UV COATING MACHINE









MAIN FEATURES:

1.The machine adopts the memory type air knife which is controlled by PLC system, which can guarantee the machine is suitable for 80g or above paper smoothly coating.



2.The machine adopts measuring roller frequency control, different coating quantity can be controlled by different linear control.





MAIN SPECIFICATIONS:

Model

KP-1000J

KP-1200J

Max coating width

950mm

1150mm

Paper thickness

105-600gsm

105-600gsm

Work speed

25-60m/min

25-60m/min

Total weight

5000kg

5500kg

Total power

72kw

72kw

Dimension

12000 x 1760 x 1600mm



12000 x 1960 x 1600mm
