UST-145GW UV COATING MACHINE







INTRODUCTION:

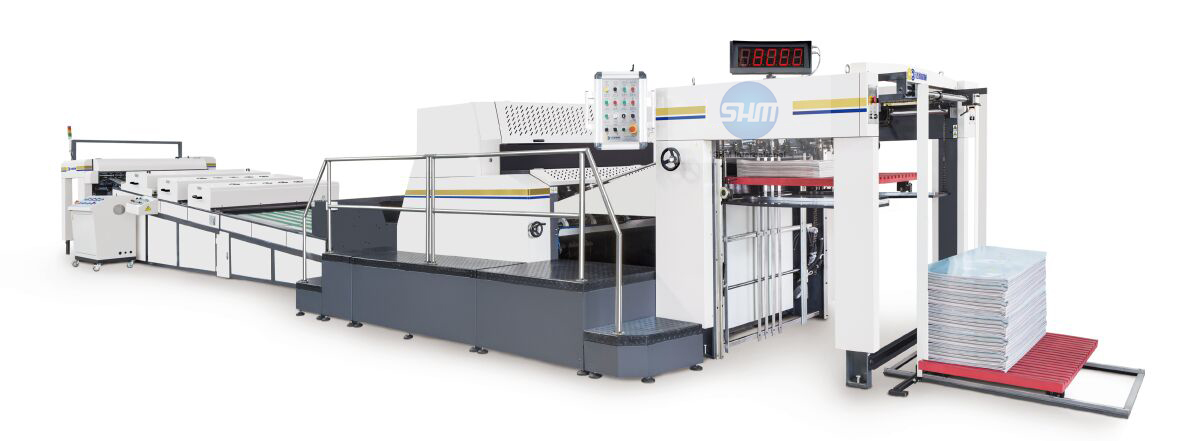

UST-145GW type UV machine for yttrium Xin company of the new generation of high speed water and oily dual-use large format, coating equipment, the printing machine under the gripper biting paper tilting structure, has the advantages of high speed, high stability. Combined with the paper feeding system, it is easy to operate and convenient to maintain.


 资源 9@4x-100.jpg


MAIN SPECIFICATIONS:


Paper size

Max.1100x1450mm

Min.350x460mm

Glazing area

Max.1060x1420mm

Paper thickness

128-600gsm

Biting depth

4-5mm

Production speed

8000/h

Amount x UV lamp power

3x13kw(with low)

2x15kw(with high)

Amount x IR lamp power

24x1kw

Power

 55kw

Weight

14800kg

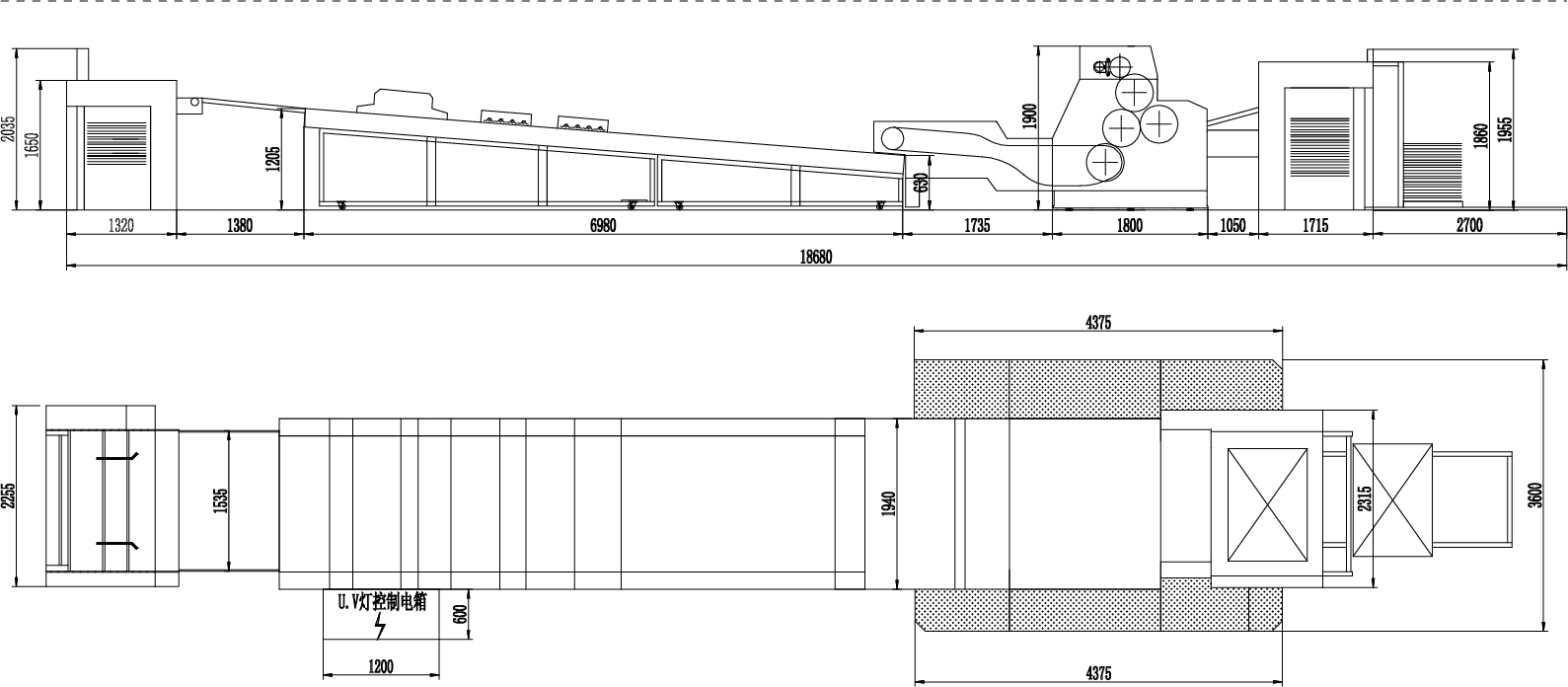

Dimension

16500x3500x1900mm





PAPER FEEDING SYSTEM


资源 11@4x-100.jpg

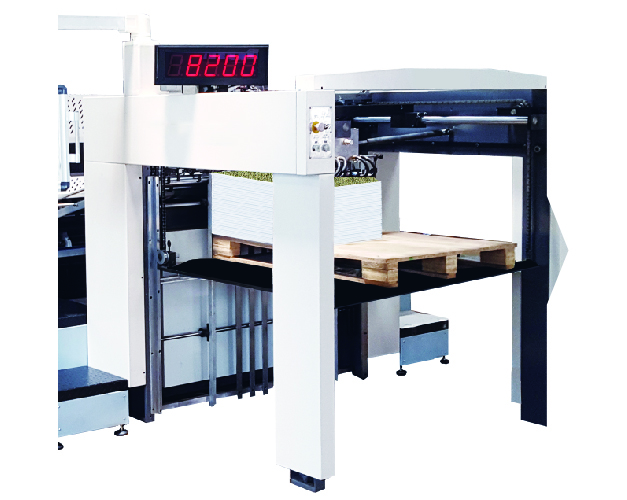

Adopting high-speed maintenance-free paper feeding system, which can make a smooth output with both thin or thick papers.
The electromechanical adjustable double sheet detection device, an abnormal paper feeding will cause a immediate shutdown. At the same time, the HMI will show the warning cause, eliminate malfunctions and then restart.
The feeding platform adopts stainless steel plate and vacuum absorption system, which can lower static electricity caused by friction and help flattening papers.
The side and front gauge control papers feeding direction and make sure it feeds accurately. If any paper fed in a wrong direction or out of paper, the machine will automatically shutdown and HMI will show the warning cause, eliminate malfunctions and then restart.


HOST COATING SYSTEM


资源 12@4x-100.jpg


The application of the bottom roller roller transmission structure, so that paper smooth, high-speed transfer.
The application of fast-clip device in coating roller can lead to a convenient loading.
Impression cylinder and gravure cylinder are pressed and clutched in pneumatic methods, users can choose manually or automatically move in or move out the trunk.
This machine uses ceramic netlike roller to deliver oil, which can lead to a more delicate coating; oil is started delivering in the front of gravure cylinder which created a large and convenient loading space.
The host equipped with safety devices, machine will be stopped if the safety door is open, thus keep the safety of operators.


INFRARED CURING SYSTEM


资源 13@4x-100.jpg

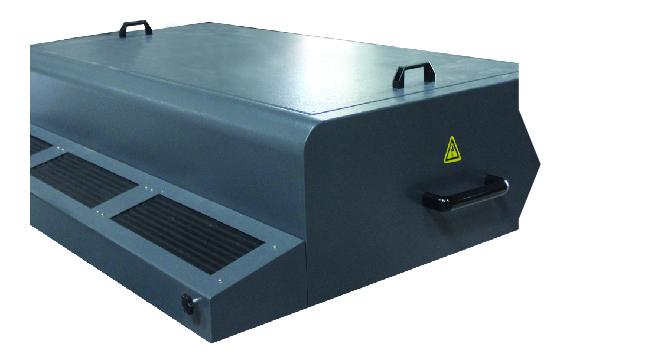

Infrared DRYING system is used on water0-based varnishing, it uses short wave to dry those quick passed water-based products instantly, energy saving and safe.


UV CURING SYSTEM

资源 14@4x-100.jpg

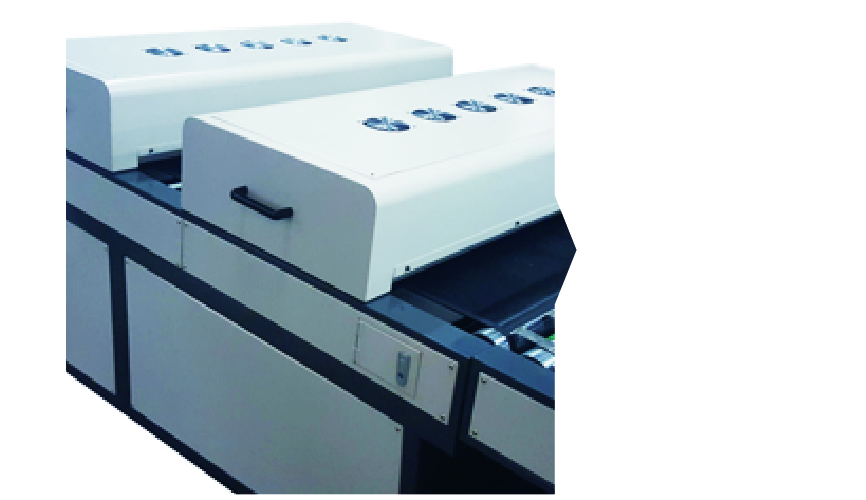

The system is combined with high-pressure mercury lamp, mirror reflector plate, electrical control system and cooling&exhausting system.  We also have automatic temperature control system to ensure there is no deformation in our varnished products. The design of full/half power mercury lamp can realize half power working under out-paper condition, which can avoid fire on paper and save energy.


CONTINUOUSLY VARIABLE CURING SYSTEM(OPTIONAL)


资源 15@4x-100.jpg

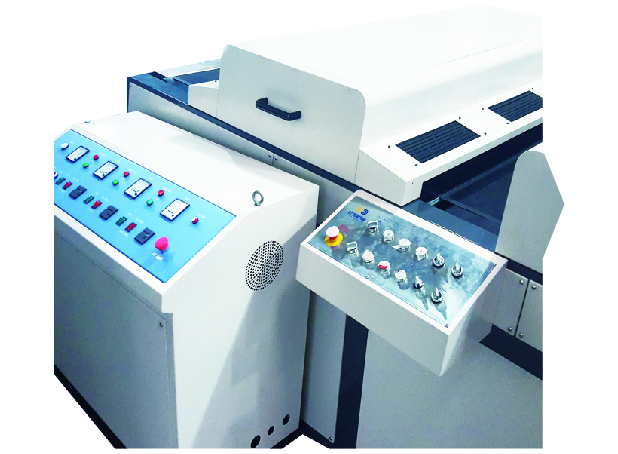

Continuously variable curing system is our company’s newly developed high-end curing device. This device can adjust UV power continuously with the changing of feeding speed. The device will turn itself in zero power while the machine is out of paper, it is safe, efficient and energy saving.


PAPER DELIVERY SYSTEM


资源 16@4x-100.jpg


The drag-open type of design can give operators great convenience.
Equipped with adjustable paper suction structure, both thick or thin papers can be slowly and placidly collected in the system, which can letter papers smoothly collected in uniform and keep it away from crush damage.
Equipped with pneumatic sampling device, the whole spot check process are easy and quick, and keeping safety problems away from happening.
